Setup Guide

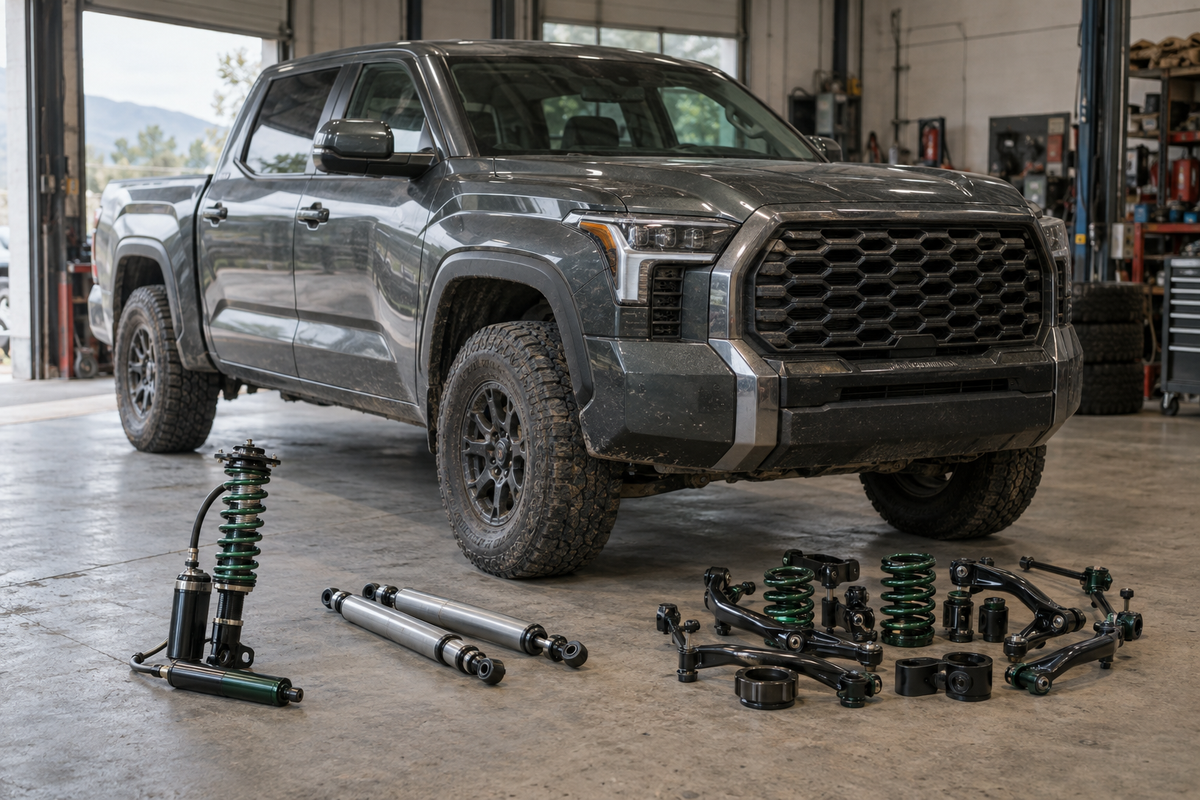

2022+ Tundra Suspension: Shocks, Coilovers or a Complete System?
In brief
Start with the behavior you want to change. Replacement shocks improve damping while retaining the basic spring strategy. Front coilovers combine a spring and damper and add more control over ride height and tuning. A complete system earns its cost when lift, wheel travel, alignment, rear behavior and added weight need to work together.
The third-generation Tundra starts from a different place
The 2022 redesign replaced the previous rear leaf springs with a multi-link, coil-spring arrangement. Up front, the truck continues with an independent double-wishbone layout. That gives the new Tundra a more integrated ride-and-control baseline, but it also means parts designed around the 2007–2021 truck do not define what the 2022+ chassis needs.
Factory equipment matters. TRD Pro, TRD Sport, Adaptive Variable Suspension and load-leveling rear air suspension can change starting height, electronic compatibility and which aftermarket parts fit. Before shopping, record the model year, trim, engine, suspension option, current tire size and permanent accessories.
When replacement shocks are enough
A shock-only path makes sense when spring support and ride height are already appropriate. Better vehicle-specific damping can reduce float, secondary motion and uncontrolled rebound without changing the truck's basic load capacity.
This is often the cleanest answer for a stock-height daily driver or a truck that sees graded roads and moderate trail use. Height-adjustable front shocks can also provide modest leveling while reusing the factory spring. The important limitation is simple: the original spring still carries the weight. A new damper cannot recover ride height lost to a bumper, winch or heavy rear build.
What a coilover adds
A front coilover replaces the spring-and-damper assembly as a matched unit. It can add a different spring rate, a larger damper body, rebuildability, ride-height adjustment and, on some products, external compression adjustment.
That flexibility helps when the truck carries permanent front weight or needs a deliberate combination of tire clearance and control. It also makes setup more sensitive. Raising the spring perch changes preload and working position. It does not automatically create more usable travel. At greater lift heights, upper-control-arm geometry, CV angles, sway-bar position and alignment become part of the decision.
When a complete system is worth it
A complete system is not merely four expensive shocks in one box. The useful systems match front and rear damping, define an intended lift range and add the geometry or spring components needed to use that range.
ICON's 2022+ Tundra stages illustrate the progression. Entry systems retain more factory hardware. Higher stages add threaded coilovers, upper control arms, reservoirs, larger rear shocks, adjustable compression and rear links. FOX, Bilstein, Eibach, King and Old Man Emu take different routes through the same problem.
The system approach becomes valuable when the truck has several interacting changes: 35-inch tires, permanent armor, repeated rough-road speed, a rear spring change or a lift high enough to affect alignment and travel.
Our selection order
- Identify the factory suspension and measure current ride height.
- Separate permanent weight from occasional payload.
- Name the complaint: float, harshness, bottoming, heat fade, lost travel or tire clearance.
- Choose the spring support and lift range.
- Choose damping capacity for terrain and speed.
- Add geometry parts only when the chosen height and travel require them.
- Plan alignment and any required driver-assistance recalibration.
A good Tundra suspension plan can be modest. The goal is not to buy every component at once. It is to avoid buying the same job twice.
