Technical Note
Added Front Weight Changes More Than Ride Height
Permanent front equipment changes static axle load, ride height, available bump travel, pitch response and braking energy. Correcting the visual rake with preload or a spacer does not replace spring support, damping, alignment and brake-capacity review.
The load is concentrated where it matters

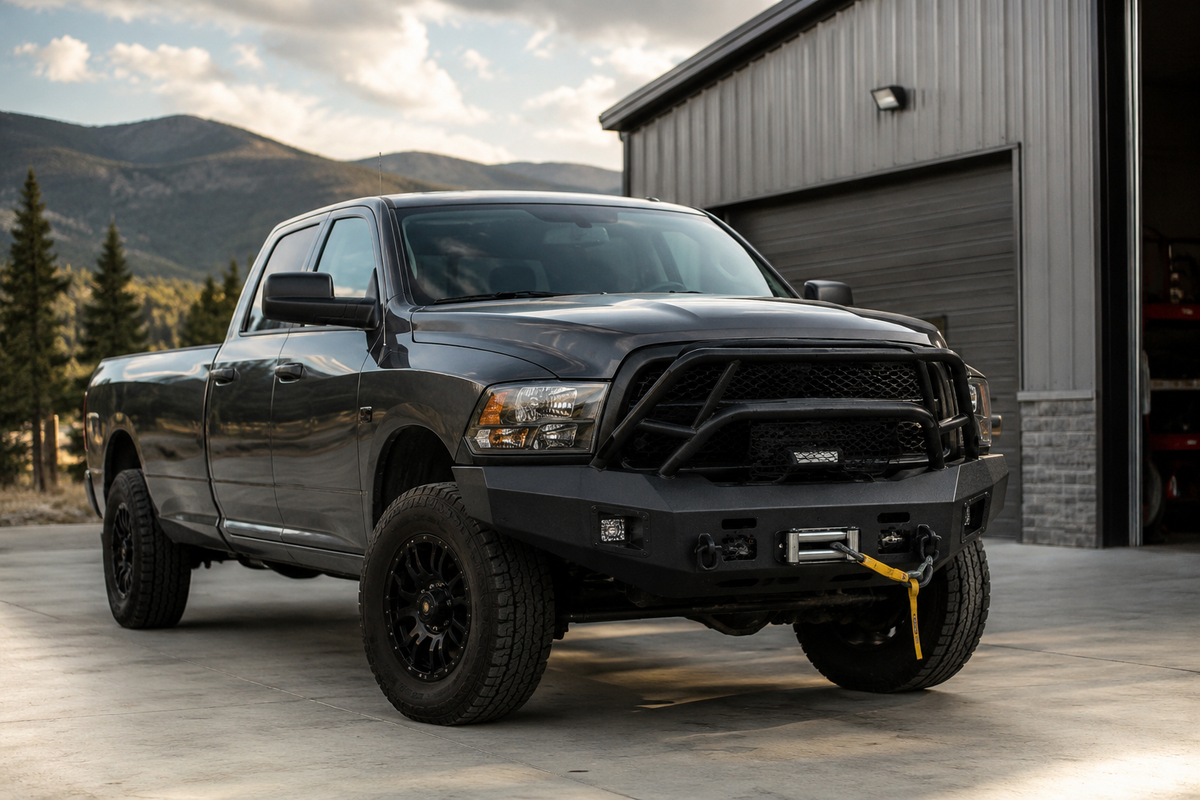

A steel bumper, winch, lights and skid structure may add several hundred pounds near or ahead of the front axle. The axle sees the static increase, and the component's distance from the vehicle center can amplify pitch inertia.
The first visible result is reduced ride height. The more important result is reduced available bump travel. The suspension begins normal driving closer to its bump stop and has less room to absorb braking dive or an off-road impact.
Spring support restores position
The loaded truck should sit in a useful part of its travel. Preload can raise the installed position within a limited range, but it does not change the rate of a linear spring. A spring selected for the added load can restore support without relying on excessive preload.
Rate must still suit the truck's actual use. A front spring designed around a heavy bumper and winch can feel abrupt if those parts are later removed.
We measure hub-to-fender height before and after the equipment is installed. That establishes the real change rather than relying on catalog weight alone.
Damping controls the added energy
More sprung mass stores more energy in pitch and heave. The damper must control that motion in compression and rebound.
If the front rises and falls repeatedly after a dip, damping may be insufficient for the new mass. If sharp impacts transmit directly into the cabin, compression damping, tire pressure or bump-stop engagement may be involved. Spring rate and damper force are evaluated separately.
Braking sees the weight too
Brakes convert the vehicle's motion into heat. Permanent mass adds energy to every speed change. Weight placed forward also affects the load carried by the front tires during deceleration.
A moderate equipment package belongs in the brake calculation, particularly when combined with larger tires, towing or long descents. The result may still fit within a healthy original system.
We check pad temperature range, rotor condition and fluid service before deciding whether the truck needs additional hardware capacity.
Alignment follows the new working height
Changing front ride height changes control-arm position and can alter caster, camber and tie-rod angles. The truck should be aligned after the final permanent load and spring package are installed.
We also check CV angles, ball-joint travel, brake hoses, sensor wiring and tire clearance. A bumper installation can change front cooling airflow, so we inspect what has been blocked or redirected around the brakes and powertrain.
The complete front-weight plan
- Weigh or estimate each permanent component.
- Measure ride height before and after installation.
- Restore spring support and usable travel.
- Match damping to the new mass and terrain.
- Align at normal working weight.
- Reassess braking and tire load with the finished truck.
The bumper may be the visible change. The chassis responds to the weight, not the appearance.
