Technical Note

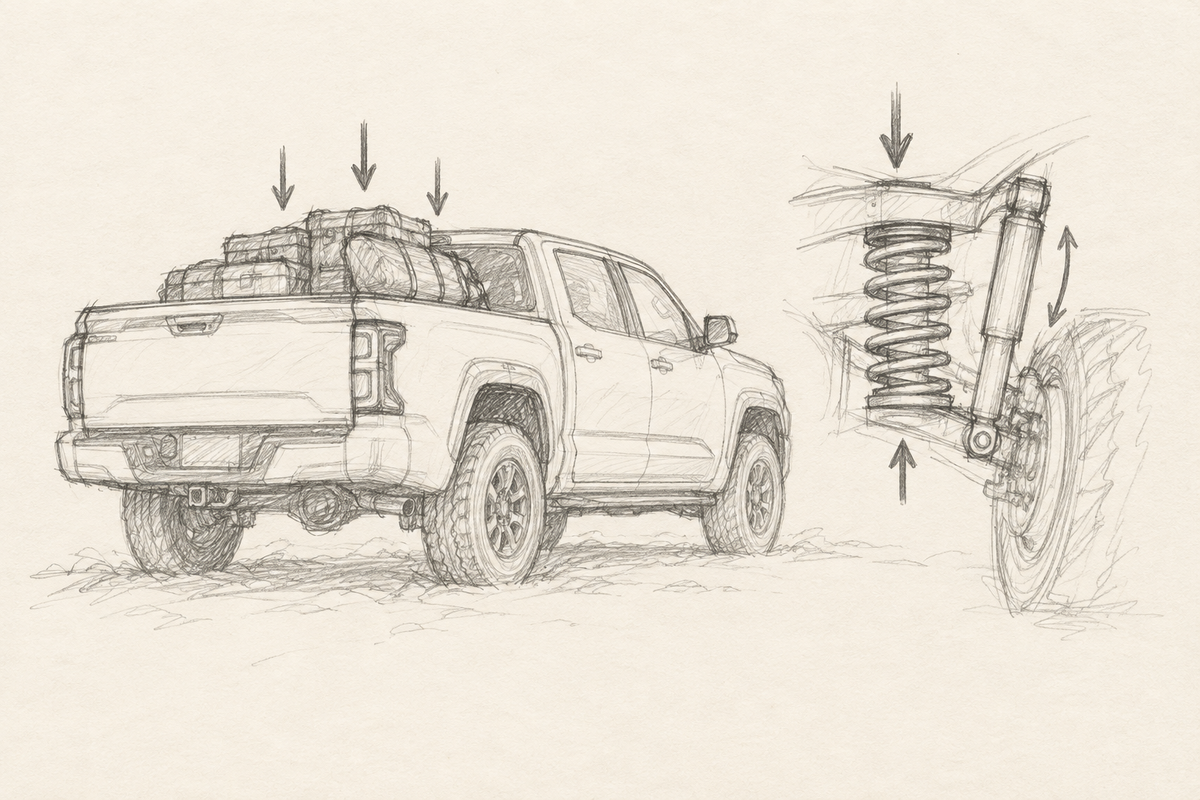

Added Rear Weight on a Tundra: When Shocks Are Not the Fix
In brief
Shocks control how quickly the rear suspension moves. Springs carry the static load and establish where the truck sits in its travel. If a canopy, drawers, tools, spare tire or trailer tongue weight pushes the Tundra too far into bump travel, firmer damping may slow the motion but it cannot restore the missing support.
Measure before changing parts
Record rear ride height in three conditions: normal empty configuration, normal travel configuration and the heaviest legitimate working configuration. Axle-scale weights are better than accessory estimates because they include fuel, passengers, hardware and everything that remained in the bed.
Then describe the behavior. Static sag, repeated porpoising, single-impact bottoming and side-to-side sway point toward different parts of the system.
Static sag is a support problem
When permanent weight lowers the truck at rest, the rear spring is carrying more force and compressing farther. That leaves less bump travel available. A higher-capacity or load-matched spring can restore the intended working position.
Spring advertising needs context. A stated additional-load figure may describe a design target rather than permission to add that amount beyond Toyota's payload or axle ratings. Suspension parts do not change the certification label on the truck.
Motion is a damping problem
If the loaded ride height is sound but the rear continues to cycle after a dip, damping may be insufficient for the new sprung mass. More appropriate rebound control can settle the truck. Compression tuning can help manage how the suspension accepts a bump and how much support the chassis feels during a large input.
Excessive damping creates its own problems. Too much rebound can keep the suspension from recovering between closely spaced bumps. Too much compression can send sharp impacts into the cab and reduce the tire's willingness to follow the surface.
Permanent and temporary loads need different compromises
A Tundra that carries 500 pounds every day can use a spring designed around that constant weight. A truck that is empty all week and heavily loaded twice a month needs a wider operating range. Progressive or multi-rate coils, supplemental support and adjustable damping can help, provided they preserve articulation and remain within vehicle ratings.
There is no setup that makes an empty axle and a heavily loaded axle behave exactly the same. The goal is acceptable control across the real range without making the common condition unpleasant.
A clean diagnostic order
- Verify payload, axle and tire limits.
- Measure the loaded axle and ride height.
- Correct hitch setup and load placement.
- Restore working ride height with appropriate spring support when needed.
- Match damping to the resulting mass and terrain.
- Recheck alignment, brake-hose routing and electronic calibration requirements.
If the truck sits correctly but moves too much, look at damping. If it sits too low before the road introduces any movement, start with support.
