Bigger Tires Change More Than the Stance

FG / Technical Note 004

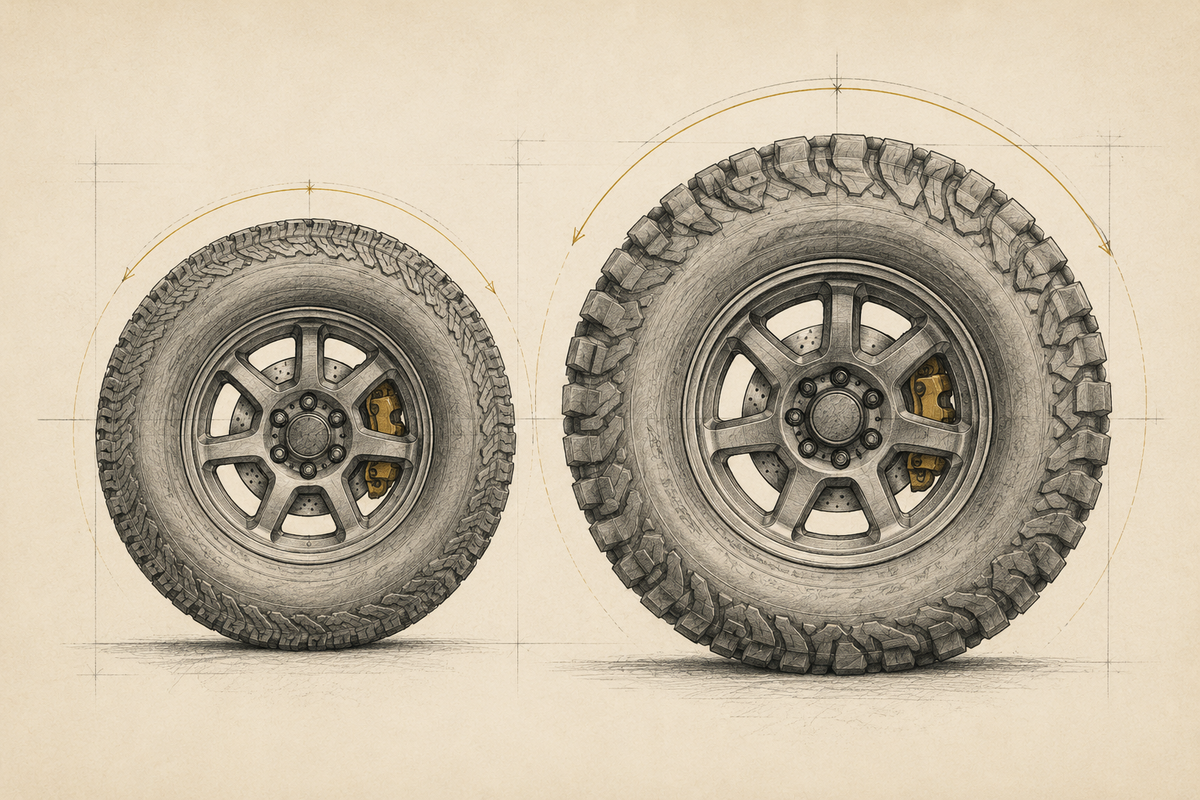

Technical sketch comparing a stock truck tire with a larger off-road tire and visible brake hardware

Quick answer

Tire diameter and assembled wheel-and-tire weight affect more than appearance and ground clearance. They change the truck's effective gearing, the leverage available at the contact patch, the energy the brakes must manage, and the amount of mass the suspension has to control.

A modest tire change on a lightly used truck may only call for corrected tire pressure, a calibration check, and a healthy set of factory brakes. A truck moving to a heavy 35- or 37-inch package for towing, mountain travel, or repeated off-road use deserves a broader look at gearing, brake capacity, wheel clearance, and suspension setup. The useful comparison is the actual tire package and the way the truck is used, not the size printed on the sidewall by itself.

Start with three numbers

We start with outside diameter, total assembled weight, and the tire's construction. Those numbers tell us more than the nominal size alone.

Outside diameter changes effective gearing and the mechanical relationship between brake torque and force at the road.
Assembled weight includes the wheel, tire, balance weights, beadlock hardware where applicable, and the larger spare many builds add at the same time.
Construction affects sidewall behavior, load capacity, ride quality, rolling resistance, and how the tire responds during braking and steering.

Two tires carrying the same 35-inch label can differ meaningfully in measured diameter and weight. Published dimensions are a useful starting point. We still prefer to compare manufacturer specifications for the exact part numbers under consideration and, when practical, verify the assembled package.

Diameter changes the truck's effective gearing

A taller tire travels farther with each wheel revolution. The engine and transmission therefore see a taller effective gear ratio. Moving from a nominal 33-inch tire to a 35-inch tire changes the ratio by roughly 6 percent. Moving from 33 to 37 inches changes it by roughly 12 percent. Actual results depend on the tires' measured rolling diameters.

Nominal change	Approximate diameter increase	Approximate road speed at an indicated 60 mph before correction
33 to 35 inches	6.1%	63.6 mph
33 to 37 inches	12.1%	67.3 mph

The same change can make the truck feel slower away from a stop and more reluctant to hold a transmission gear on a grade. Recalibration can correct the speedometer and help the vehicle's control systems work with the new tire size. It does not restore the mechanical advantage lost through the taller tire. Gearing, engine output, vehicle weight, and intended use determine whether that difference is worth addressing.

Wheel-and-tire weight matters twice

Additional tire and wheel weight becomes part of the vehicle's total mass, and it also rotates. Rotational inertia depends on both the amount of mass and how far that mass sits from the axis. Tire tread and sidewall material live near the outside of the assembly, so added tire weight can have a larger rotational effect than the same weight carried inside the cab or bed.

This is why we ask for the weight of the complete proposed package rather than relying on diameter alone. A carefully chosen 35-inch combination may be easier for the truck to manage than a smaller package built around a very heavy wheel and tire. Marketing categories such as forged, flow-formed, cast, all-terrain, and mud-terrain help describe the components. The scale gives us the number we need for comparison.

What changes under braking

The brake system creates torque at the hub. The tire converts that torque into force at the road. As tire radius increases, the same brake torque produces less force at the contact patch. In simple terms, a 37-inch tire has a longer lever working against the brakes than a 33-inch tire.

Using nominal diameter alone, the 33-to-37-inch change calls for about 12 percent more hub torque to create the same contact-patch force. That calculation does not include the added vehicle mass, rotating inertia, differences in tire grip, or changes in weight transfer. It is a useful way to understand the direction and approximate scale of the change, not a prediction of stopping distance.

Stopping distance still depends on the full system: tire traction, road surface, ABS calibration, vehicle load, brake condition, temperature, and driver input. A larger tire can provide more traction in some conditions while also asking more of the brake system. Those effects occur together.

One stop and repeated stops are different questions

A panic stop on a dry road often becomes traction- and ABS-limited. The brakes may already be capable of locking the tires, which means a larger caliper or rotor does not automatically shorten that single stop.

Repeated stops, long descents, towing, and heavy vehicle loads add a thermal problem. The brakes convert the truck's kinetic energy into heat. More vehicle mass and rotating energy give the system more heat to absorb, while repeated use gives it less time to cool. Pedal travel, friction behavior, fluid condition, and rotor temperature become more noticeable as the duty cycle grows.

This distinction helps us make a better recommendation. A daily-driven truck with a modest tire increase and no heat-related symptoms may be well served by fresh fluid, appropriate pads, and properly maintained factory hardware. A heavier truck on 37s that regularly tows through elevation changes presents a different brake duty cycle even if both trucks feel acceptable during a single stop around town.

The suspension and steering feel the change too

The wheel-and-tire assembly is largely unsprung mass. The suspension must move and control it as the tire follows the road. Added unsprung mass can make sharp impacts more noticeable and can ask more of the dampers during repeated movement. Tire sidewall stiffness and pressure can either amplify or soften what the driver feels, so weight alone does not describe the entire ride change.

Steering response may slow as the tire becomes taller, heavier, or more aggressive in tread design. Wheel offset and tire width can add scrub radius and steering effort while changing loads on bearings and steering components. Those geometry changes deserve separate attention from diameter.

We do not assume that a larger tire will make every truck ride worse. A taller sidewall can improve compliance on broken surfaces, and a well-matched suspension can control a heavier package effectively. The result depends on how the parts work together.

Calibration, pressure, and load capacity belong in the plan

Vehicle manufacturers calibrate the speedometer, transmission behavior, stability systems, and tire-pressure monitoring around approved tire sizes and operating ranges. Ford, for example, provides tire-size correction through its ProCal tool on supported applications. The available correction range and required procedure vary by vehicle.

Tire pressure should be selected with load capacity and actual axle loading in mind. The maximum pressure molded into the tire is not automatically the correct operating pressure for the truck. NHTSA directs owners to the vehicle placard and owner's manual for the original specification. Modified trucks may need a qualified tire professional to translate actual axle loads and the replacement tire's load table into a sensible starting pressure.

We also check the spare. A substantially different rolling diameter can create problems when it is installed on a driven axle, particularly on four-wheel-drive and all-wheel-drive systems.

Does the truck need a brake upgrade?

We would look closely at brake capacity when several of these conditions appear together:

The new wheel-and-tire package is substantially taller or heavier than stock.
The truck tows, carries added armor or equipment, or operates near its axle ratings.
The route includes long grades or repeated high-speed braking.
The current brakes develop odor, fade, vibration, rapid pad wear, or a changing pedal during the truck's normal use.
The driver wants more consistent pedal response and thermal reserve rather than a cosmetic change.

Many trucks remain within the useful range of their factory brakes after a moderate tire change. Maintenance and pad selection may be the appropriate first step. Larger rotors, calipers, and pads become more relevant as the demand for torque, thermal capacity, consistency, and service life increases.

Wheel clearance needs to be checked before selecting larger brake hardware. Off-road wheels, beadlock designs, and unusual spoke profiles can have plenty of nominal diameter while leaving limited caliper clearance.

Plan the combination once

Before ordering tires, record the truck's current tire size, proposed tire, wheel specification, assembled weight, axle gearing, added vehicle weight, and normal use. Include the hardest recurring job the truck performs, such as towing through the mountains or spending hours on washboard roads. A rare emergency is worth considering, but the repeated duty cycle usually tells us more about the equipment the truck needs.

That information lets us evaluate tires, gearing, brakes, and suspension as one build. It also reduces the chance of solving the same problem twice.
