Brake Noise on a Working Truck: What We Listen For
Brake noise gives us a timing clue, not a complete diagnosis. We want to know whether it happens cold or hot, at light or heavy pressure, once per wheel revolution or continuously, and whether it arrived with a change in pedal feel or braking response. Performance-oriented compounds can make some noise, but new or changing noise still deserves inspection.
We start with the owner's description
“The brakes squeak” is usually the beginning of a useful conversation. We ask for the sound and the moment around it.
A high-frequency squeal during a light parking-lot stop points us toward a different set of causes than a scrape that follows wheel speed. A single click when direction changes can indicate pad movement in the hardware. A rhythmic sound can follow a rotor feature or localized contact. A growl under heavy pressure can come from a more aggressive friction material working in its intended range.
The truck does not need to speak in technical terms. Cold, hot, wet, dusty, first stop, last stop, light pedal and hard pedal are enough to narrow the field.
Compound and hardware both contribute
Brake squeal is a vibration problem. The pad, rotor, caliper, bracket, shims and hardware form a system that can excite and amplify a frequency. Compound choice changes the tendency, but installation condition can decide whether that tendency becomes audible.
We inspect shims, abutment surfaces, retaining hardware, caliper movement and the correct use of approved lubricant. A missing clip or pad that cannot move cleanly in its support can sound like a compound issue.
Performance pads often accept more dust or sound in exchange for temperature capability and friction consistency. That does not excuse grinding, abrupt changes or a system that was quiet before the installation and immediately became severe afterward.
Conditions leave evidence
Mud, road salt, wash water and overnight corrosion can create short-lived noise on the first applications. Embedded debris can score a surface. Fluid or grease contamination can alter friction and produce odor, smoke or pulling.

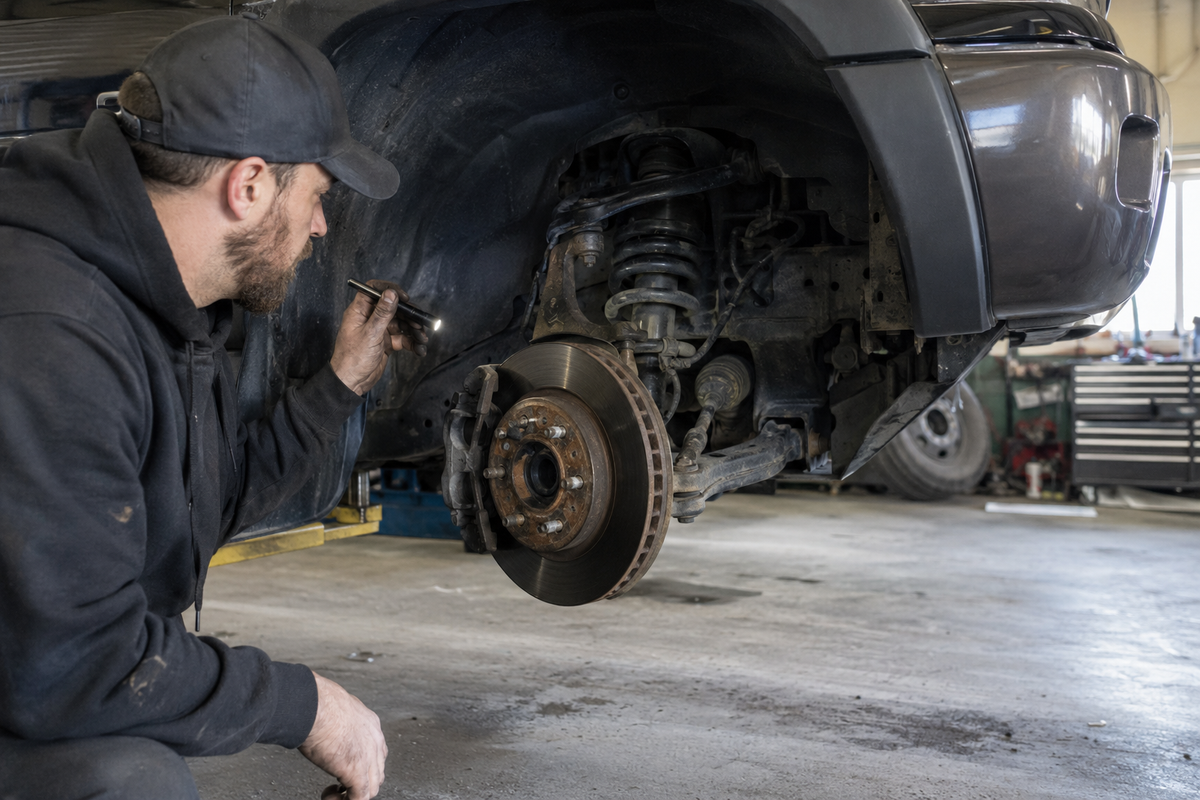

We look through the wheel before disassembly when possible. Uneven pad wear, a polished band, deep scoring, heat color or leakage helps connect the sound to a physical condition.
If the noise is accompanied by a longer pedal, steering pull, vibration, warning light or reduced braking, the truck should not be treated as a harmless squeak investigation.
A useful road check
After confirming the system is safe, we reproduce the condition with deliberate changes:
- First stop of the day versus fully warm brakes
- Very light pressure versus a firm stop
- Forward versus reverse
- Straight travel versus steering input
- Dry pavement versus the first stop after rain or washing
We avoid repeated hard stops as a diagnostic shortcut. That can add heat, change the transfer layer and create another symptom before the original one is understood.
What we consider acceptable
A mild intermittent sound from a known performance compound may be a reasonable trade for the truck's use. We tell the owner before installation, and we still verify that the hardware and surfaces are correct.
We do not normalize grinding, metal-to-metal contact, severe vibration, one-sided wear or a sudden change in brake behavior. Those move the conversation from comfort to inspection.
