Build Your Truck Once, Not Twice
If the finished truck will have larger tires, different wheels, a bumper, winch, rack, tools and towing duty, we want those decisions on one page before the first expensive part is ordered. The sequence is not glamorous: define the job, estimate the finished weight, choose the tire, verify the wheel and brake envelope, then match suspension and steering to the result.
The part that causes trouble is usually the part chosen in isolation
We see the same situation often enough that it has become a running conversation here. A wheel is ordered because it looks right. Later, it will not clear the brake kit. A suspension is chosen for the empty truck. Six months later, the bumper and winch use most of the available front travel. Tires get larger, steering gets busy, and the owner buys another round of parts to settle it down.
None of those purchases were necessarily bad. They were just asked to live in a truck that did not exist when they were selected.
Describe the truck at the end
We start with a rough finished-build sheet:
- Normal passengers and cargo
- Permanent front and rear equipment
- Trailer weight and tongue weight, if applicable
- Tire diameter, construction and expected mass
- Wheel diameter, width and offset
- Terrain, road speed and climate
- The hardest recurring use, not the once-in-a-lifetime photo
The weights do not need to be perfect at the planning stage. They need to be honest enough to reveal whether the truck will live empty, carry permanent load or alternate between two very different conditions.
Tires connect almost every decision
Tire diameter affects braking leverage, clearance and gearing. Tire mass affects acceleration, braking and suspension response. Construction and pressure affect steering feel and ride.
Once the tire is defined, wheel fitment becomes more than appearance. The wheel must carry the load, place the tire safely through steering and suspension travel, and clear the intended brake package. A template check before purchase is far easier than choosing between spacers and another set of wheels later.

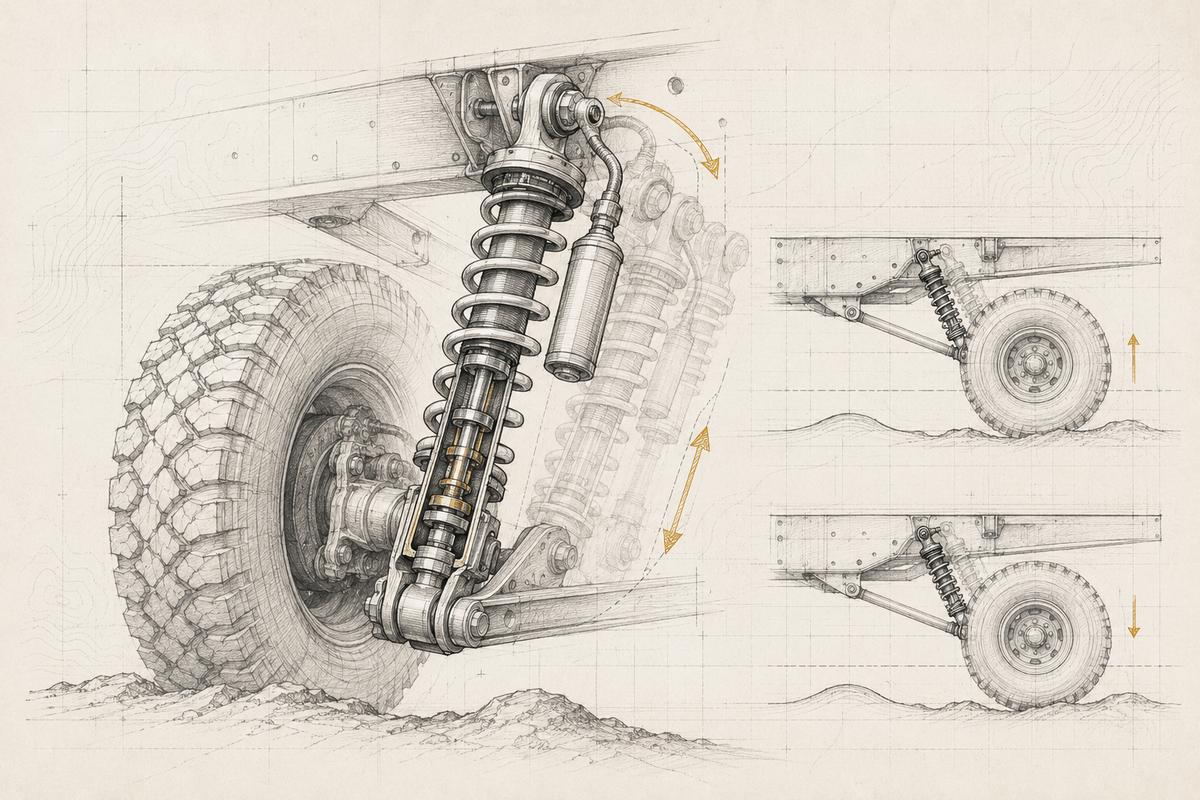

Weight tells the suspension where to work
Springs support the finished load and place the chassis in its travel. Dampers control movement around that position. If the truck will gain a steel bumper and winch, we would rather select around that known permanent weight than use preload or height as a substitute after the fact.
Alignment and steering geometry follow the final ride height and wheel position. Control arms, tie-rod angles and full-lock clearance should be part of the same drawing, even if they are purchased later.
Leave room for the truck to evolve
Planning does not mean buying everything at once. We often prefer staged builds because each change can be measured.
The important part is preserving compatibility. A wheel can be chosen now with room for a future brake package. A spring can be selected after permanent equipment is installed. The current pad can suit daily driving while the service plan leaves a clear path to more thermal capacity later.
We want each stage to be a complete, usable truck rather than a temporary collection of compromises waiting for the next part.
Our order of operations
- Define normal use and the finished equipment list.
- Estimate or measure axle loads.
- Choose tire size and construction.
- Verify wheel load, position and future brake clearance.
- Choose brake capacity for the tire, weight and duty.
- Match spring support and damping to the loaded truck.
- Correct geometry, align and record the final setup.
That page of notes usually costs less than the parts it prevents us from buying twice.
