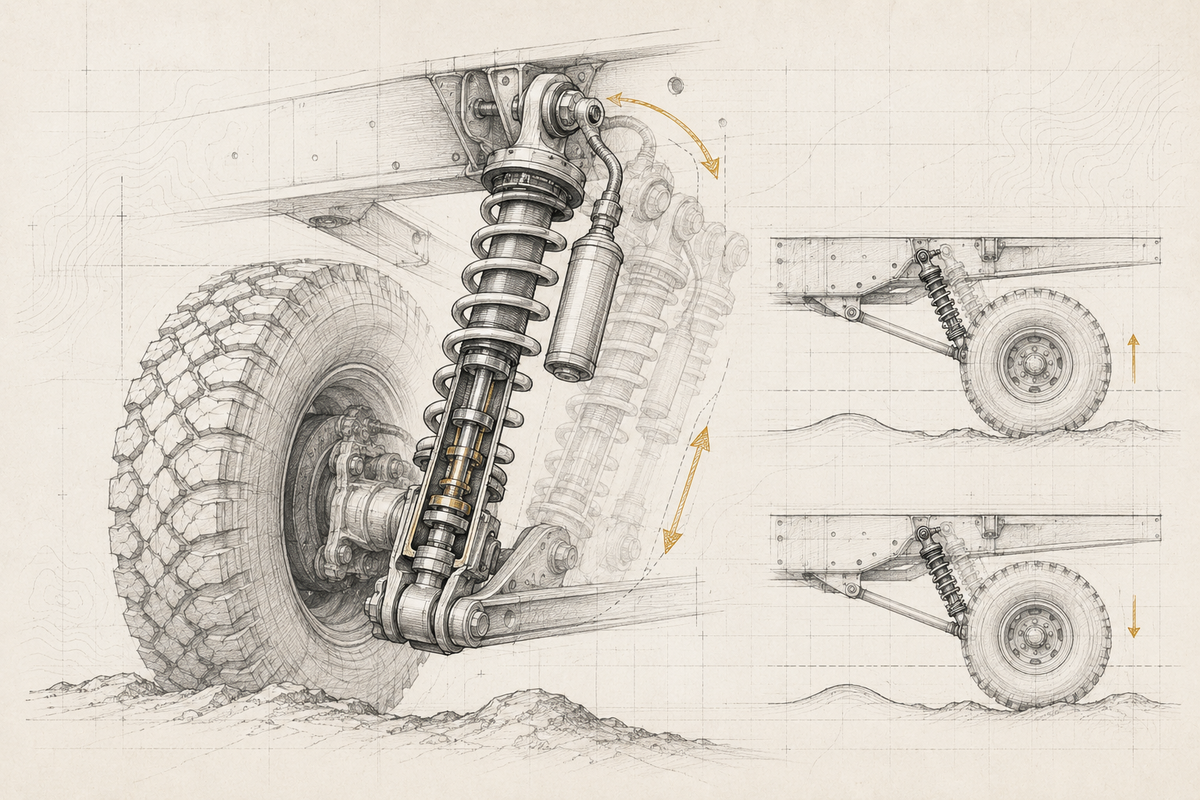

Choose Suspension for the Way You Actually Drive
In brief
Suspension should be selected around the truck’s real load, terrain, speed and desired behavior. Lift height is only one result of the package. Spring rate holds the vehicle in its working range, damping controls how quickly it moves, and geometry determines whether the rest of the chassis can use the travel cleanly.
Describe the drive
“I want better suspension” can mean a quieter ride on broken pavement, more control with a trailer, less bottoming in the desert, more articulation on a trail or room for a larger tire. Those goals can pull the setup in different directions.
We begin with the route the truck sees most often. A Raptor crossing fast washboard asks the dampers to manage repeated wheel movement and heat. A loaded overland Land Cruiser may need spring support before anything else. A Tundra towing on the highway needs body control without turning every unloaded commute into a punishment. A Wrangler crawling slowly needs usable travel and geometry more than a high-speed desert tune.
The truck’s normal condition matters too. A bumper and winch that live on the vehicle are different from cargo added twice a year.
Springs establish the working position
Springs support the vehicle and set how much force is required to move through travel. Rate, free length, preload and suspension motion ratio all influence the result at the wheel.
When permanent weight is added, the original spring may sit deeper in its travel. That reduces bump travel and changes alignment and geometry. More preload can recover height in some adjustable systems, but preload and spring rate are not the same thing. If the added load is substantial, the correct spring rate may be the more durable answer.
Too much spring for the everyday load can make the truck skip across small irregularities and reduce compliance. Too little can leave it riding low, hitting bump stops and asking the dampers to control movement from a poor starting position.
Dampers control motion
The spring carries the load. The damper manages the speed of suspension movement. Compression damping resists the wheel and body moving together into the suspension; rebound damping manages the spring’s return.
We care about how those forces are distributed across shaft speed. Low-speed damping influences body motions such as pitch, roll and weight transfer. Higher shaft speeds arrive at sharper bumps and impacts. A damper can feel controlled in a lane change and still be harsh over square edges, or comfortable over small chatter and underdamped after a large compression.
Added mass asks more of the dampers because there is more energy in the moving body. Repeated rough terrain also creates heat inside the shock. Reservoir volume, piston design, oil capacity and tuning all contribute to consistency.
Travel and geometry
Usable travel matters more than a height number. The suspension needs enough compression travel to absorb impacts and enough droop to keep the tire connected as the chassis moves.
Lifting changes control-arm angles, tie-rod relationships, driveshaft angles and the position of the suspension within its available travel. The amount varies by platform and suspension type. A modest lift that preserves geometry can outperform a taller setup that spends its life near bind or bump stop.
Wheel offset and tire size also affect steering load, scrub radius and clearance. Suspension is part of a chassis system, so we check the tire, wheel, brake and steering plan together.
Mixed use requires priorities
Most trucks on this site will do more than one job. We do not expect a trail truck to arrive on a trailer or a tow vehicle to stay attached every day. The solution is to rank the conditions.
For a daily driver carrying permanent front-end weight, the priority may be correct ride height and body control without excess unloaded harshness. For a tow vehicle, rear support and damping under load may lead the plan. For high-speed dirt, heat management and consistent damping move upward. For technical terrain, travel, articulation and tire placement matter more.
Adjustable dampers can help when the truck’s load changes significantly, but adjustment is useful only when the owner understands what each control changes. More clicks are not automatically more capability.
Information we need
We ask for permanent front and rear added weight, typical cargo, trailer tongue weight, tire and wheel size, current ride height, terrain, speed and the behavior that needs improvement. Photos of the truck at normal load and measurements from hub center to fender can be more useful than a broad description such as “it sags.”
From there, we decide whether the first need is spring support, damping, geometry correction, additional travel or a coordinated package.
The suspension should let the truck settle quickly, use its travel without drama and remain predictable as load and terrain change. If the setup only looks right while parked, we have left too much of the job unfinished.
