Technical Note
One-Piece vs. Two-Piece Brake Rotors

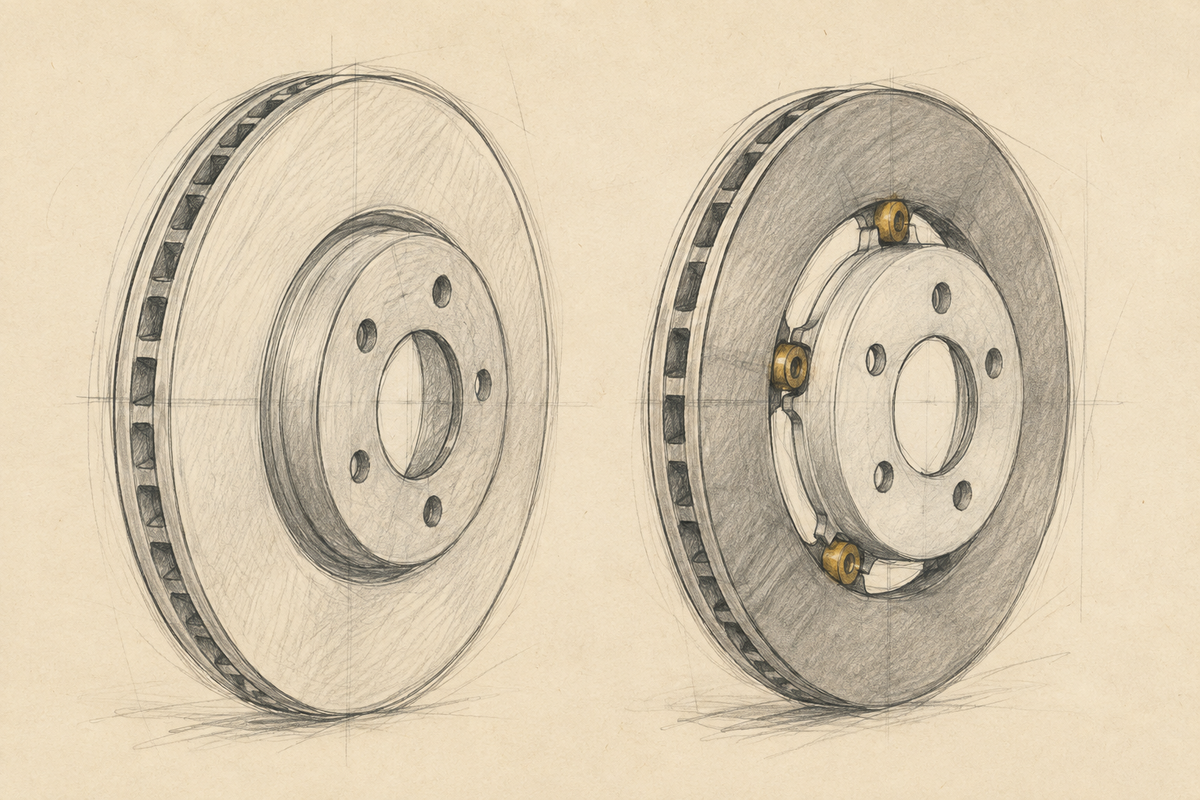

A one-piece rotor integrates the friction ring and hat in one iron casting. A two-piece rotor separates them and joins an iron ring to a distinct hat, commonly aluminum. The two-piece design can reduce rotating mass, manage thermal expansion and make the friction ring serviceable. A quality one-piece rotor remains durable, simple and cost-effective when those advantages are not required.
The two jobs inside one rotor
The friction ring must absorb brake energy, tolerate repeated temperature change and provide the correct surface for the pad. The hat locates that ring on the hub and transfers torque into the wheel-bearing assembly.
A one-piece rotor asks one material and casting to perform both jobs. This produces a straightforward component with no connecting hardware. For original-equipment service, daily use and many towing applications, that simplicity is useful.
A two-piece rotor allows the ring and hat to be designed separately. The ring can retain the iron mass and ventilation required for braking while the hat can use a lighter material and a geometry optimized for mounting and heat isolation.
Thermal expansion
The friction ring grows as temperature rises. In a fixed one-piece shape, the ring and hat influence each other during that expansion. A properly engineered two-piece assembly can allow controlled relative movement between the ring and hat through its drive system.
The details matter. Bobbin, pin or bolted arrangements have different movement, noise, wear and service requirements. A two-piece appearance alone does not establish that the rotor floats or manages expansion in a specific way.
Mass and heat capacity
Replacing part of an iron hat with aluminum can reduce rotating and unsprung mass. That reduction can help suspension response and acceleration, especially with a large rotor.
Removing mass from the friction ring is a different decision. The ring needs enough material to absorb heat without excessive temperature rise. A larger diameter does not guarantee more thermal capacity if the ring is too thin or light for the duty.
We compare ring diameter, thickness, vane design, swept area and mass rather than using piece count as a performance rating.
Service and operating cost
A two-piece assembly can allow the worn ring to be replaced while the hat is retained, provided the hat and hardware remain within specification. This can reduce replacement cost over repeated service cycles.
The initial assembly costs more and requires correct hardware, orientation and torque. Some systems are directional. Some permit limited movement and can produce more mechanical sound than a one-piece road rotor. Replacement rings must match the exact hat and attachment design.
A one-piece rotor is usually less expensive to purchase and simpler to replace as a complete unit. That remains attractive for trucks that do not repeatedly use the thermal or mass advantages of the more complex design.
Choosing by duty rather than appearance
We favor two-piece rotors when the brake package needs a large diameter without unnecessary hat mass, when repeated heat makes controlled expansion valuable, or when replaceable rings improve the service plan.
We favor a quality one-piece rotor when cost, quiet operation, exposure to corrosion and straightforward service carry more weight than the marginal mass and expansion advantages.
Both can be appropriate. The engineering quality, material, ventilation and application match matter more than the number of pieces named in the product description.
