Towing Is a Whole-System Problem
In brief
Tow rating is one boundary in a much larger setup. Payload, tongue weight, axle load, hitch configuration, trailer brakes, tires, cooling and the route determine how the combination behaves. We build the plan around measured weights and the conditions the truck will see.
Begin at the scale
The advertised trailer rating does not tell us how much payload remains in a specific truck. Cab, drivetrain, options and installed accessories change curb weight. The payload label on the vehicle and actual scale weights provide a better starting point.
Passengers, cargo, bed equipment, hitch hardware and trailer tongue weight all use payload. Separate axle weights show where that load went. We want the truck, each axle, the trailer and the complete combination within their ratings, with margin appropriate to the trip.
The scale also helps diagnose behavior. A light front axle can explain vague steering after the trailer is connected. A rear axle close to its limit will not be fixed by a firmer shock.
Hitch setup moves load

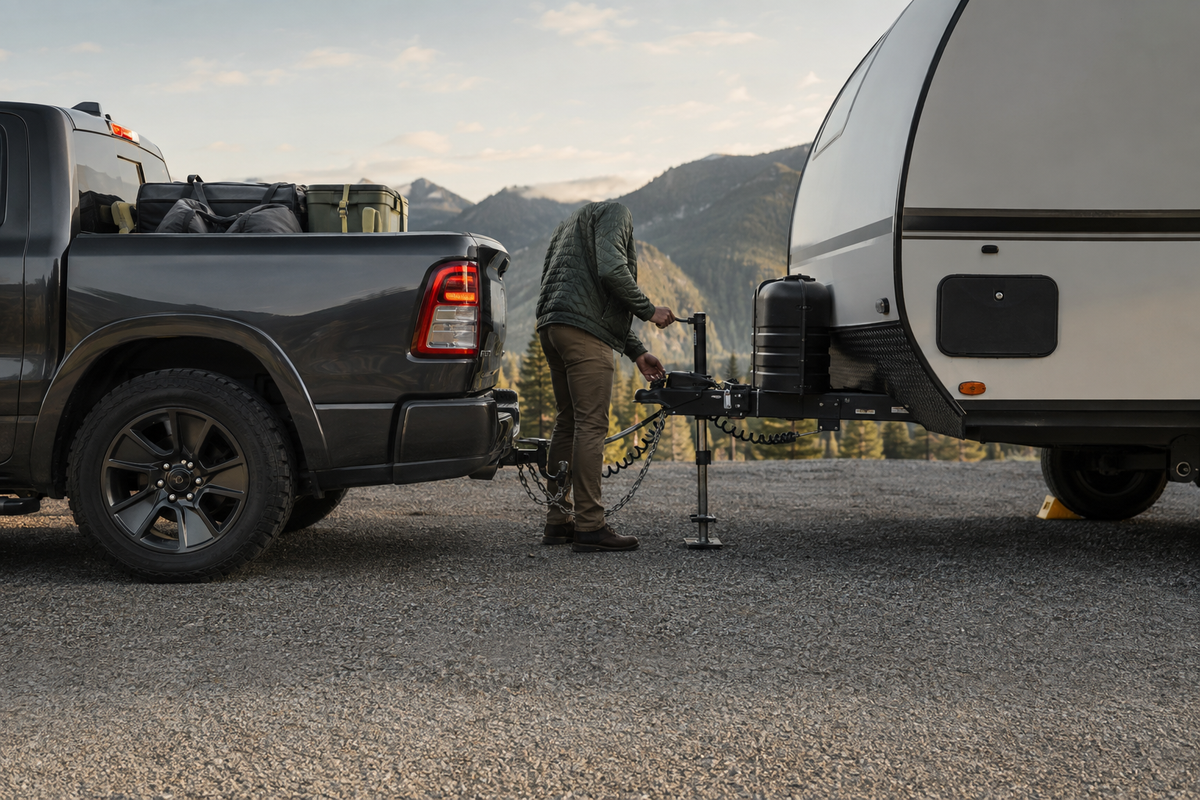

A conventional trailer places tongue weight behind the rear axle. The rear settles while load is removed from the front axle. A weight-distributing hitch, when specified and adjusted correctly, uses spring bars to distribute part of that change across the tow vehicle and trailer axles.
Adjustment should follow the hitch and vehicle manufacturer’s instructions. More bar tension is not automatically better. The target is a stable, correctly loaded combination that preserves steering, braking and suspension travel without exceeding any rating.
Trailer brakes belong to the stopping system
The trailer must contribute the braking work it was designed to carry. Electric brake condition, adjustment and controller gain influence stopping distance, stability and truck-brake temperature. Gain should be checked when trailer weight or road conditions change.
We inspect connectors, breakaway equipment, tires and brakes before a long trip. A truck brake upgrade can add capacity, but it should never become a reason to ignore weak trailer brakes.
Springs and dampers solve different problems
Springs support weight and establish ride height. Dampers control movement. If the loaded truck rests too deep in its travel, spring support or load distribution needs attention. A stronger damper may reduce oscillation while leaving the underlying ride-height problem untouched.
When the load varies widely, supplemental support can be useful if the base spring is appropriate for permanent weight. The system should preserve droop and tire contact rather than simply holding the body high.
Tires connect every decision to the road
Truck and trailer tires need the correct load capacity, condition and pressure for their measured loads. The highest number on the sidewall is not a universal daily target. Use vehicle and tire-manufacturer guidance and account for the actual axle weight.
Wheel and tire changes can alter steering response, brake leverage and heat generation. Larger, heavier tires deserve a place in the brake and suspension plan.
The route changes the workload
A combination that feels easy on level highway can work very hard on a hot mountain grade. Speed control, transmission strategy, following distance and brake temperature matter. Plan stops and inspections around the route rather than waiting for odor or pedal change to announce that the system is hot.
Our towing worksheet
We collect the VIN-specific ratings, payload label, loaded axle weights, trailer weight, tongue weight, hitch type, brake-controller setting, tire information, permanent equipment and expected route. Those details reveal where an upgrade can help and where setup or maintenance should come first.
Towing confidence grows when every part has a clear job and enough margin to do it repeatedly.
