Setup Guide

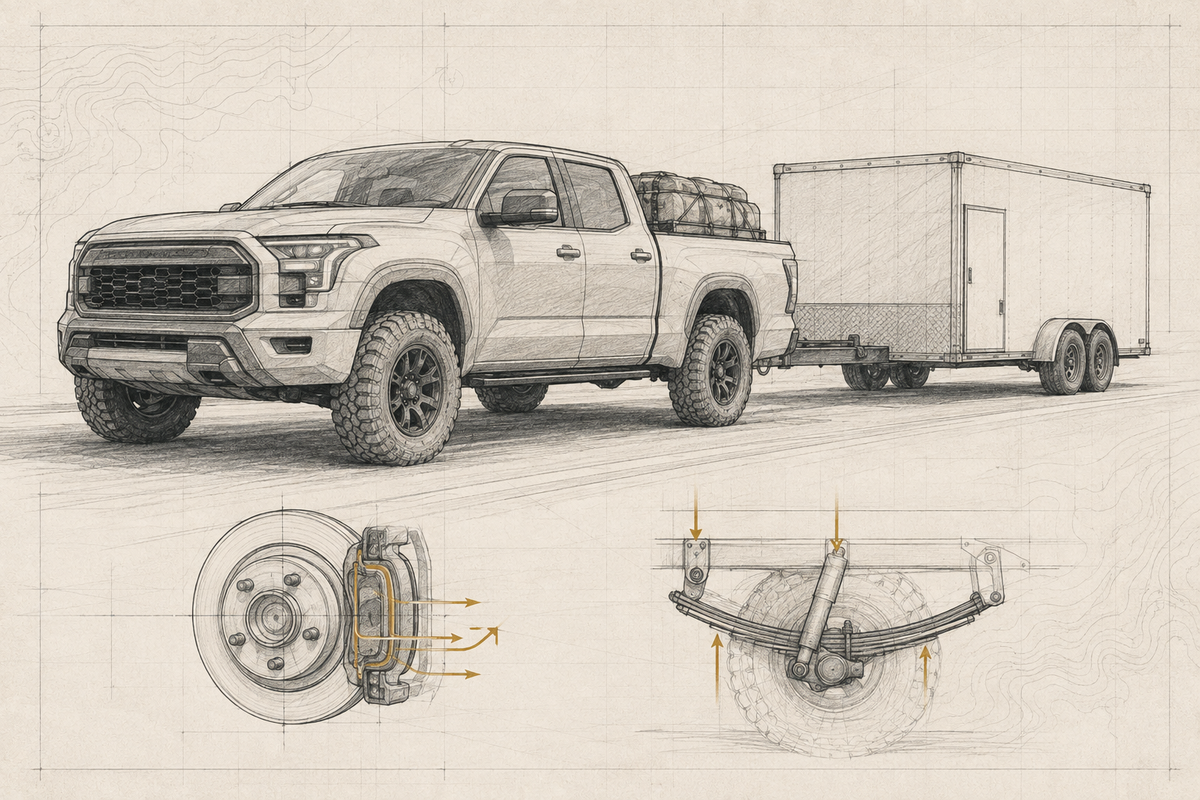

Tundra Suspension and Brakes for Towing, Tires and Added Weight
In brief
A Tundra used for towing, larger tires and permanent equipment needs a coordinated brake-and-suspension plan. Springs carry the load, dampers control its motion, the tires define available grip, and the brakes convert the vehicle’s energy into heat. Upgrading one part without measuring the others can make the truck feel different without making it more complete.
Define the Tundra first
The 2007–2021 second-generation Tundra and the 2022+ third generation begin from different chassis, powertrain and suspension designs. Within each generation, cab, bed, drivetrain and factory package affect curb weight and ratings.
We verify the truck’s door-label payload and owner information rather than relying on a maximum number from an advertisement. Payload includes people, cargo, accessories and trailer tongue weight. A bumper, winch, bed cap, rack and larger spare consume capacity before the trailer is connected.
The upgrade plan should reflect the specific truck that is in the driveway.
Towing changes more than rear ride height
Tongue weight is applied behind the rear axle. The rear suspension compresses, the body pitches and load distribution changes. Excess squat is visible, but steering feel, headlight aim, alignment and damper workload can change too.
Rear springs or supplemental support can return the truck to a healthier working position. The choice depends on how often it tows and how large the difference is between empty and loaded conditions. A spring built around constant heavy load can be unnecessarily firm when the bed is empty. A helper system may handle occasional load more gracefully.
Dampers still need to control the added mass. Support that restores height without adequate damping can leave the truck moving more than the driver expects after dips, bridge joints or steering inputs.
Tires and wheels add another layer
Larger tires change effective gearing, steering leverage and braking leverage. Heavier tires and wheels add rotating and unsprung mass. The truck may feel slower to accelerate, less eager to change direction and more demanding to slow.
Tire load rating and pressure must match the loaded use. More aggressive tread can behave differently in wet braking than the original highway tire. Wheel offset can influence scrub radius and steering load. We include those effects instead of treating the tire as a visual decision outside the chassis plan.
Braking with load
Trailer brakes are a central part of the combination. Correct controller setup and maintained trailer hardware reduce the work the tow vehicle must absorb. The Tundra’s service brakes still need enough torque, thermal capacity and consistency for the vehicle and for the conditions in which the combination operates.
If the truck stops acceptably once but loses response during repeated or downhill braking, heat is the lead question. Pad range, fluid condition, rotor capacity and airflow all deserve attention. If the complaint started with a larger tire package, additional torque and rotational energy may be part of the change.
For second-generation Tundras and related LC200/LX570 applications, application-specific larger brake systems are available. We check model year, existing hardware and wheel clearance rather than assuming a shared platform name guarantees fitment.
Third-generation Tundras need their own application-specific assessment. A product developed for the earlier truck should not be carried forward without explicit manufacturer coverage.
A sensible order for the build
- Record the truck’s payload information and current axle weights if possible.
- Add permanent equipment to the calculation.
- Measure the loaded trailer tongue weight and confirm trailer-brake condition.
- Choose tires and pressures for the actual load and terrain.
- Match rear support and damping to the empty-to-loaded range.
- Evaluate brake response and temperature behavior with the final tire and load configuration.
This order avoids choosing springs for a future weight estimate or brakes for tires that later change. It also makes the recommendation easier to explain.
What we ask the owner
We want the generation and exact model, tire and wheel package, permanent front and rear weight, trailer type, loaded tongue weight, trip terrain, current suspension and the behavior that is least satisfactory. “Tows 7,000 pounds” is a beginning, not the complete brief.
Some owners want less rear movement on the highway. Others want a more controlled pedal on grades. Some want to clear a larger tire while keeping daily ride quality. The parts list changes with the objective.
The finished Tundra should carry its normal load in a useful part of the suspension travel, settle cleanly after a disturbance and keep predictable braking response through the trip. Those are connected outcomes, so we plan them together.
