Technical Note

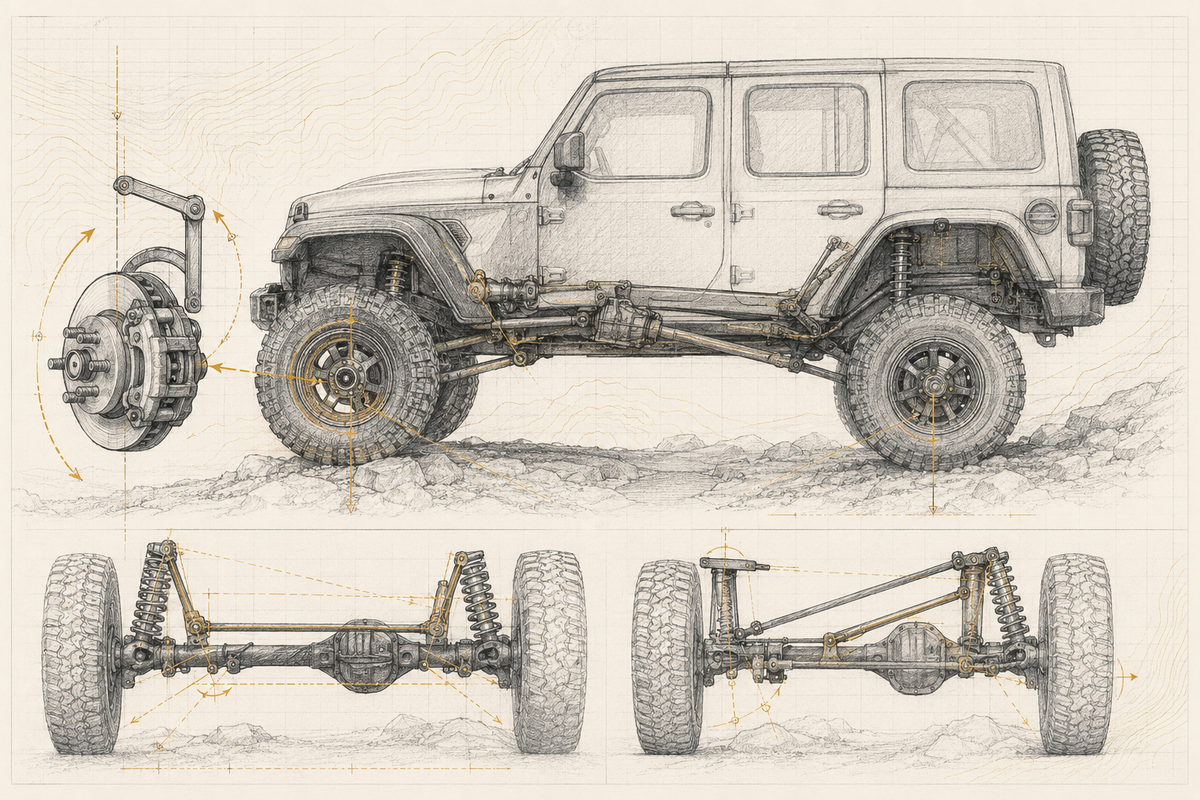

What Bigger Tires and Lift Change on a Wrangler
In brief
Larger tires and lift change a Wrangler’s braking leverage, rotating mass, steering geometry, axle loads and available suspension travel. JK, JL and JT share the basic conversation but not the same components or measurements. We plan the tire, wheel, lift, steering, brakes and gearing as one system.
Start with the reason for the tire
A Wrangler owner may want ground clearance, traction, flotation, obstacle clearance or appearance. The tire size should follow that use. A 35-inch tire on a daily-driven JL creates a different brief from a 37-inch tire on a JK used in rocks or a Gladiator carrying camping equipment.
We ask where the tire needs to work, how far the Jeep travels on pavement, whether it is driven to the trail, and what permanent weight has been added. That gives the build a purpose beyond the sidewall number.
What the tire changes at the brakes
Increasing tire radius gives the tire more leverage against the brake. A heavier tire and wheel also carry more rotational energy. The driver may notice more pedal effort, softer response or reduced confidence during repeated braking.
The brake system can be addressed in levels. Service condition comes first: pads, rotors, calipers, hoses and fluid. A pad compound can alter response and temperature range. A larger rotor or complete brake package can add torque and heat capacity when the tire and use require more margin.
The tire still decides how much force reaches the ground. Mud-terrain tread, pressure, weather and surface affect grip. On loose terrain, progressive modulation can be as important as peak brake torque.
Steering leverage and wheel offset
Larger tires increase steering effort and load. Wheel offset can move the tire centerline outward, changing scrub radius and the forces fed back through the steering. The result may be heavier steering, more sensitivity to bumps and greater demand on ball joints, tie rods, bearings and steering components.
On a solid front axle, track bar and drag link relationships are central to steering behavior. Lift can change their angles and the axle’s lateral position. Caster also influences return-to-center and stability.
We do not diagnose every wander or shimmy as a need for a steering stabilizer. Worn joints, tire balance, alignment, wheel offset and geometry need to be inspected. A stabilizer can control motion, but it should not hide loose or misaligned parts.
Lift and travel
A lift may create clearance and improve breakover geometry, but the suspension needs compression and droop travel after installation. Bump stops, shock length, spring retention, brake hoses, driveshafts and steering links all have to work through the range.
JK, JL and JT packages are not interchangeable. The Gladiator’s wheelbase and payload use create a different rear-suspension and load conversation. JL and JT electronic and axle options also vary. We verify chassis, axle, engine, package and intended load before choosing components.
The smallest lift that clears the needed tire through real articulation often preserves better geometry than a taller setup chosen only for stance.
Gearing and drivability
Larger tire diameter changes effective gearing. The engine sees a taller overall ratio, which can reduce acceleration and increase transmission hunting. On the trail, crawl behavior and control may change. Regearing may return the powertrain closer to its intended operating range.
This does not directly increase brake capacity, but it shapes the complete driving experience. A Jeep that accelerates reluctantly, hunts for gears and asks for more brake effort has several symptoms from the same tire decision.
Build sequence
We work through the Wrangler or Gladiator in this order:
- Choose the tire around terrain and use.
- Select a wheel that provides clearance without unnecessary offset.
- Use only the lift required for travel and tire clearance.
- Correct alignment and steering geometry for the chassis.
- Inspect axle, joint, bearing, hose and driveshaft demands.
- Match gearing to tire size and driving conditions.
- Match brake response and capacity to the final tire, weight and terrain.
Permanent bumpers, winches, armor, racks and spare carriers belong in the spring-rate and damping decision. A build assembled one isolated system at a time can end with springs that no longer support the weight and brakes selected before the tire package was known.
The road portion still counts
Even a trail-focused Jeep may spend hours on pavement between obstacles. Predictable steering, controlled body motion and repeatable braking reduce fatigue before the trail begins and make the trip home less demanding.
We want the owner to know which compromises are deliberate. A more aggressive tire may add noise and wet-braking tradeoffs. More clearance may require geometry correction. Added armor may require spring and damper changes. Those are manageable decisions when they are made together.
The tire can be the centerpiece of the build. It should not be the only part of the build with a plan.
