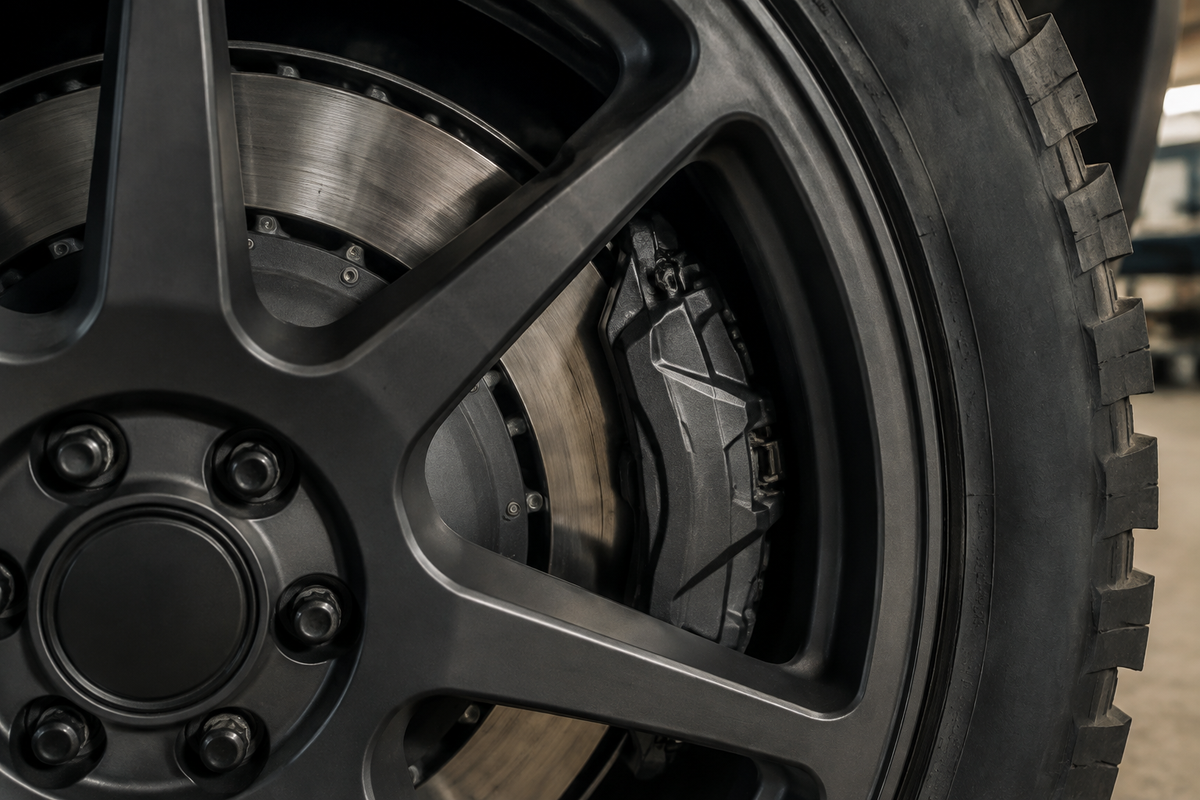

Wheel Fitment for Big Brake Kits: Diameter Is Only the First Check
In brief
Wheel diameter tells us whether a big brake kit might fit. The wheel’s barrel shape, spoke profile, offset, wheel weights and manufacturing tolerance decide whether it actually clears. A printable template checked inside the exact wheel is the most reliable step before parts are ordered.
Why the diameter label falls short
Two 18-inch wheels can have very different space around the brake. One may use a generous drop center and spokes that move outward quickly from the hub. Another may pull the spokes inward or taper the barrel near the caliper. Both carry the same nominal diameter.
Large truck brake calipers often need room in two directions. Radial clearance is the space between the outer caliper profile and the wheel barrel. Axial clearance is the space between the caliper face and the back of the spokes. A wheel can pass one check and fail the other.
Offset alone cannot solve this calculation. It locates the wheel mounting surface relative to the wheel centerline, but it does not describe the path of the spokes.
Use the template on the actual wheel
Brake manufacturers provide a wheel-clearance template for a reason. Print it at 100 percent scale, verify the scale mark with a ruler, mount it to a rigid backing and place it against the wheel’s mounting face. The template must sit flat in the same plane the hub will occupy.
Rotate it through the wheel. Wheel weights, valve hardware and local barrel shapes can create an interference point that is not obvious in one position. Leave the clearance specified by the brake manufacturer rather than accepting paper-thin daylight.
If the wheel is mounted on the truck, removal usually gives a more honest check. Photos and wheel-model claims can narrow the search, but they do not account for production changes, repaired wheels or different offsets within the same style.
Spacers create another decision
A thin spacer can create spoke clearance in some applications. It also changes effective offset, stud engagement, hub centering, bearing load and tire position relative to the body. That complete change should be evaluated before a spacer becomes the default answer.
We would rather select a wheel designed around the brake and tire package when the build is still flexible. If a spacer is appropriate, it should be high quality, properly centered and installed with the required hardware and torque procedure.
Check the rest of the envelope
Clearing the caliper is only one fitment test. The tire needs space at full steering lock and through suspension travel. Added inner-wheel clearance may move the tire outward. A larger rotor and caliper can affect spare-wheel compatibility. Some wheel designs place adhesive weights exactly where a caliper needs room.
We also confirm load rating. A wheel that clears a performance brake package still has to carry the truck and its intended payload.
The order that prevents duplicate purchases
- Choose the brake package for the truck, tire and duty cycle.
- Obtain the exact manufacturer’s clearance template.
- Confirm print scale and test the actual wheel.
- Check radial, spoke and wheel-weight clearance.
- Verify wheel load rating, offset and tire position.
- Recheck full steering and suspension travel after installation.
This sequence is slower than ordering by wheel diameter. It is much faster than discovering a conflict with the truck on a lift and a caliper already installed.
