ICON RXT Multi-Rate Rear Leaf Spring | 2010-2014 Ford F-150 Raptor

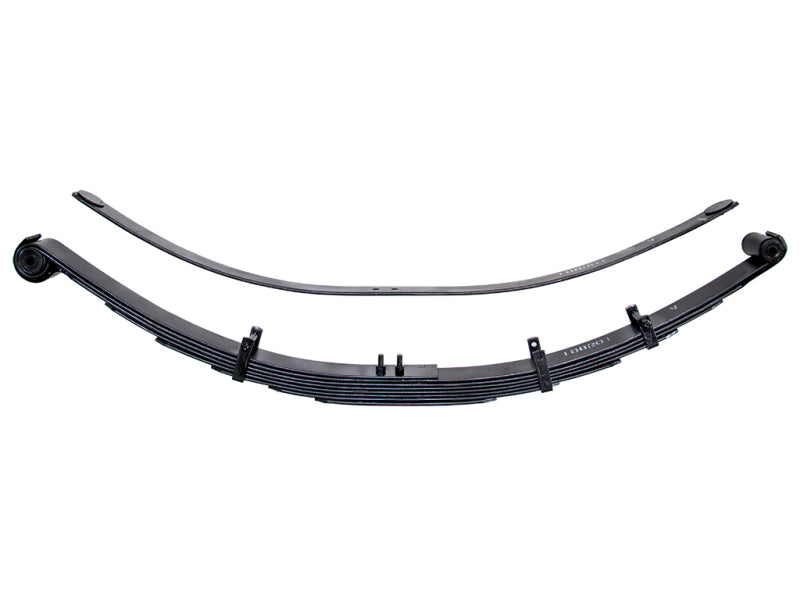

Gen 1 Raptors are old enough now that a rear spring replacement can be maintenance and an upgrade at the same time. ICON's RXT pack replaces the factory leaf with a multi-rate design that can be configured around how the truck is actually used, from an unloaded street-and-desert truck to a Raptor carrying a chase rack, spare tires, tools and trip gear.

The standard configuration is aimed at improving ride quality and rear droop. The included extra leaf lets you step spring rate up by 10% or 20% as constant load grows. ICON also adds a rebound leaf to help control axle wrap under hard acceleration and braking, plus leaf separators and tip inserts to reduce friction and keep the pack quieter over small movements.

What it changes

A fresh, well-matched rear leaf pack helps the back of a Gen 1 settle after whoops and washboard instead of continuing to pitch and hop. The useful part of the ICON design is that you do not have to tune the truck for its heaviest possible day if it spends most of its life lighter.

Key details

• Three user-adjustable spring-rate configurations
• Included leaf adds 10% or 20% spring rate above the standard configuration
• Rebound leaf helps reduce axle wrap
• Triple military-wrap front eye and rear half-wrap construction
• OE-style bonded rubber bushings for low-maintenance, quiet operation

Fitment notes

• Fits 2010-2014 Ford F-150 Raptor
• Sold individually; order two springs for one truck
• ICON 95220H hardware kit is required and sold separately
• OE shackles are recommended; most aftermarket shackles are not compatible

This Part Fits:

SKU: ICO198501
Barcode: 00840103408873
