ICON 0-3.5in Stage 7 Suspension System w Tubular UCA | 2010-2024 Toyota 4Runner

ICON 0-3.5in Stage 7 Suspension System w Tubular UCA is designed for the application listed below. An upper control arm becomes especially relevant when a suspension lift changes the alignment and articulation available from the factory setup. Consider it as part of a measured front suspension plan rather than a cosmetic add-on.

Product details

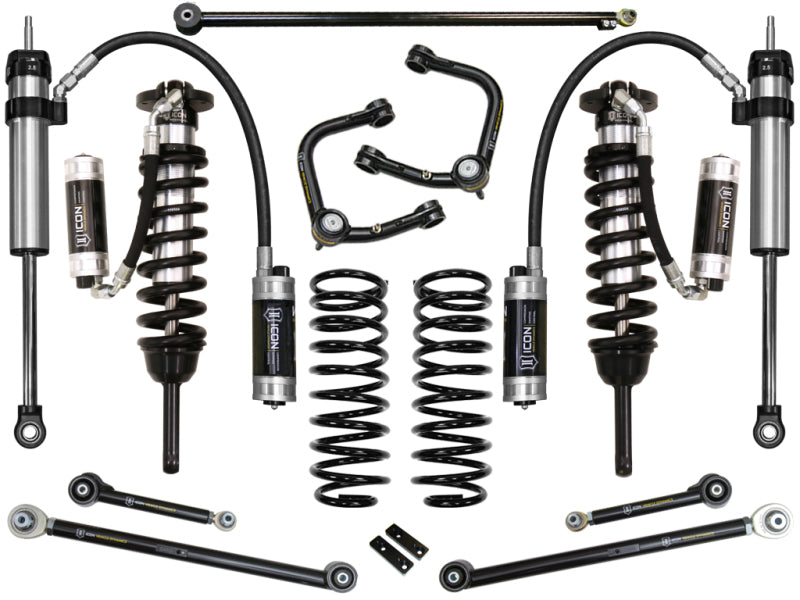

Stage 7 system includes vehicle-specific tuned, extended travel 2.5” coilover shocks with remote reservoirs, for improved heat dissipation and off-road performance, paired with tubular steel Delta Joint upper control arms. This combination allows for extended wheel travel and geometry correction for more precise wheel alignment. The coilovers are also height adjustable from 0-3.5” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2” lift rear coil springs paired with 2.5 Aluminum Series remote reservoir rear shocks utilizing vehicle-specific valving balance the performance of the truck from front to rear. CDC Valves are installed in front and rear shocks and allow for end-user compression changes to provide optimal ride quality across all types of terrain and vehicle cargo configurations. ICON's tubular steel rear upper and lower links are much stronger than the OE units, feature low maintenance multi-durometer bushings, and can be adjusted for optimum pinion angle. On top of it all, the lower links have been designed to provide correct roll steer geometry for the best possible handling on and off-road. An adjustable rear track bar is also included for KDSS compatibility that also helps correct rear end alignment. The ICON Vehicle Dynamics 2010-UP Lexus GX460 Stage 7 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

In the field

Confirm the exact lift height and trim compatibility, then get a professional alignment after installation. Recheck tire and fender clearance through steering travel before loading the truck for a long trip. The verified fitment table below covers Toyota 4Runner.

Vehicle applications
