ICON 0-3.5in Stage 7 Suspension System w Billet Uca | 2010-2024 Toyota 4Runner

ICON 0-3.5in Stage 7 Suspension System w Billet Uca is designed for the application listed below. An upper control arm becomes especially relevant when a suspension lift changes the alignment and articulation available from the factory setup. Consider it as part of a measured front suspension plan rather than a cosmetic add-on.

Product details

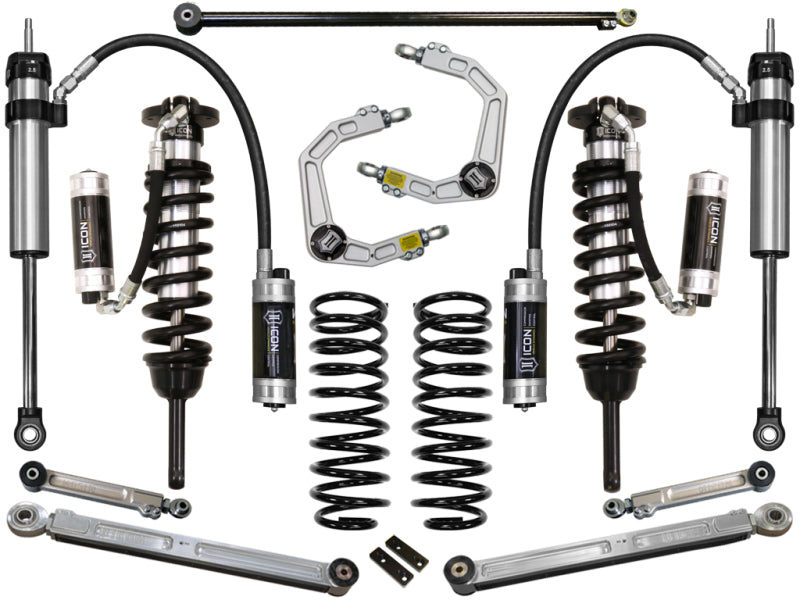

ICON Vehicle Dynamics 2010-2024 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 7 system includes vehicle-specific tuned, extended travel 2.5” coilover shocks featuring CDCV equipped remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable for 0-3.5” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. Billet aluminum Delta Joint upper control arms not only add strength and durability but help retain factory alignment specs, offer on-vehicle caster/camber adjustment, and allow proper wheel alignment at the lift height this system provides. ICON billet aluminum adjustable rear upper and lower links are made from CNC machined 6061 aluminum and anodized for corrosion resistance. These link arm kits feature PTFE-lined FK rod ends and greaseable polyurethane bushings for increased suspension articulation, reduced deflection, and on-vehicle link arm length adjustability. ICON rear coil springs deliver on-road comfort and superior off-road performance with 2” of rear lift height over stock for a level stance front to rear. An adjustable rear track bar is included to provide proper rear axle alignment, improve articulation, and ensure fitment on KDSS equipped 4Runners. The 2.5 Aluminum Series CDCV remote reservoir rear shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street with adjustable compression damping.

In the field

Confirm the exact lift height and trim compatibility, then get a professional alignment after installation. Recheck tire and fender clearance through steering travel before loading the truck for a long trip. The verified fitment table below covers Toyota 4Runner.

Vehicle applications
