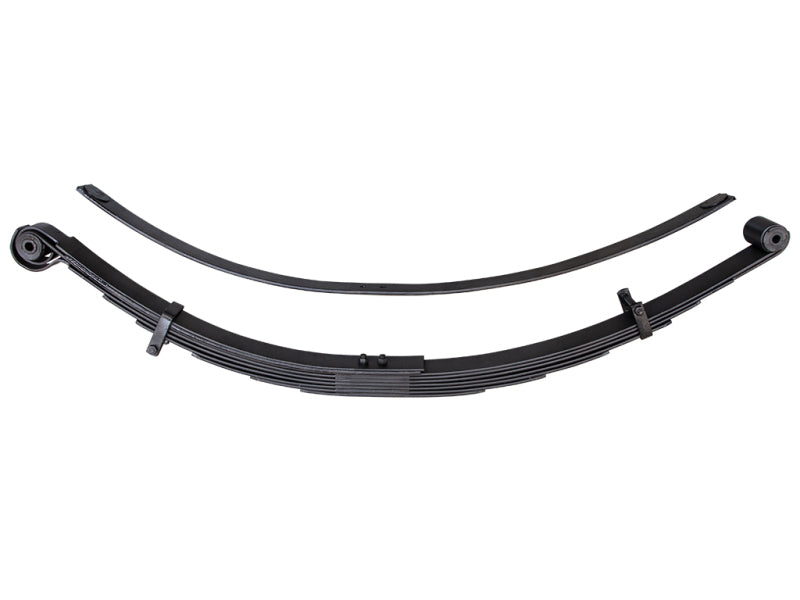

ICON Multi-Rate Rear Leaf Spring, 4WD | 2017-2026 Ford F-150

The factory Raptor rear spring has to cover everything from commuting to high-speed dirt, which leaves room for improvement once the truck gets used harder or starts carrying permanent equipment. ICON's multi-rate replacement leaf pack gives the rear a more compliant starting rate and three configurations so the same basic spring can work on a light truck or one carrying a rack, spare, tools and recovery gear.

The lighter configuration is designed to improve small-bump compliance and rear droop. The included add-in leaf can raise spring rate substantially for heavier builds. ICON also uses a rebound leaf to fight axle wrap, along with tip inserts and leaf separators to reduce friction through the pack.

Why we like it

The owner feedback on this spring is consistent about one thing: setup matters. On a correctly matched truck, owners describe less rear hop on washboard and noticeably better control under braking and acceleration. The firmer configurations can feel too stiff on an empty truck, which is exactly why we treat the spring rate as part of the build spec rather than a default setting.

Key details

• Three user-configurable rear spring rates
• Included add-in leaf supports heavier permanent loads
• Rebound leaf helps control axle wrap
• Tip inserts and separators improve spring movement and ride quality
• Designed to delete the factory rear block

Fitment notes

• Fits 2017-2020 Ford F-150 Raptor and current ICON applications for 2021-2025 F-150 4WD
• Installation requires the correct ICON leaf-spring hardware kit
• Follow ICON's bump-stop requirements when the factory block/bump-stop arrangement is removed

This Part Fits:

SKU: ICO198510
Barcode: 00840103408880
