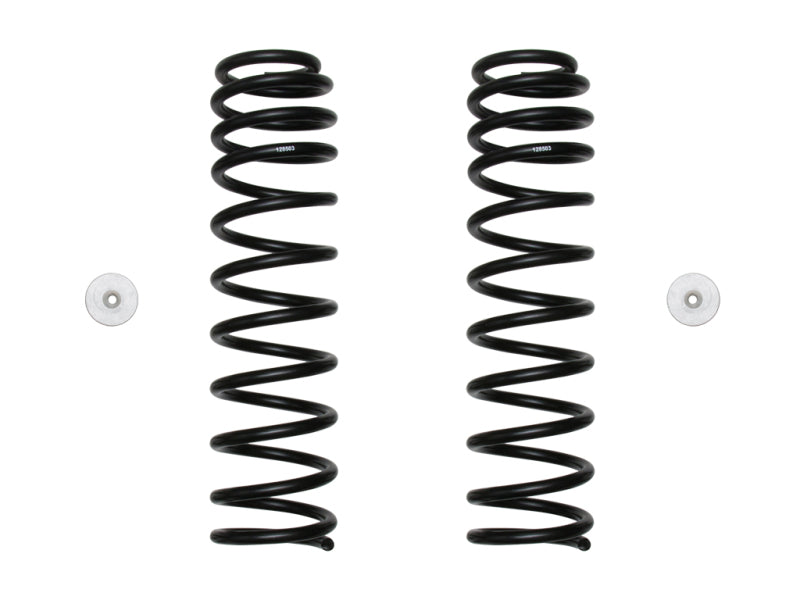

ICON Dual-Rate Front Coil Springs | 2020-2023 Jeep Gladiator / 2018-2023 Jeep Wrangler

Lift height is only useful if the Jeep still has suspension travel to work with. ICON's front dual-rate coils are designed around that idea, adding tire clearance while keeping a softer initial rate for normal road movement and a firmer secondary rate as the suspension is driven deeper into compression.

On a four-door Wrangler JL, ICON targets about 2.5 inches of front lift; the two-door can sit closer to 3 inches, while Gladiator JT applications are about 2 inches. Paired with ICON shocks, the front can gain up to 3 inches of wheel travel. The springs are intended to fit 35-inch tires, with 37s requiring ICON's optional extended bump-stop spacer and the rest of the build to support that tire size.

Why we like it

This is the right kind of lift spring for a Jeep that still sees highway miles between trails. The first rate keeps smaller impacts from feeling needlessly abrupt, while the second rate adds support when the front compresses hard into a ledge, washout or landing.

Key details

• Dual-rate front coil design
• Approx. 2.5-inch lift on JL four-door, 3 inches on JL two-door, 2 inches on JT
• Up to 3 inches of added front wheel travel when paired with ICON shocks
• Designed around 35-inch tires; 37s require optional 22029 bump-stop spacer and appropriate clearance
• Bolt-on installation

Fitment notes

• Diesel models net approximately 1.75 inches of front lift due to added weight
• ICON's advertised heights assume a typical accessorized Jeep; a stock-light Jeep may sit higher
• Not compatible with Wrangler JL 4xe or Unlimited Rubicon 392

This Part Fits:

SKU: ICO22025
Barcode: 00840103401324
