ICON Stage 3 2.5-Inch Suspension System | 2020-2022 Jeep Gladiator

Stage 3 is the point where ICON starts correcting more than ride height on the Gladiator. In addition to the 2.5-inch front coils, multi-rate rear coils and vehicle-specific 2.0 shocks, the system adds fixed front lower links to address caster and improve articulation.

That makes it a stronger choice than Stage 1 for a JT that sees regular trail use or carries real trip weight. The rear spring’s droop, ride and overload rates give the bed more support than a spacer-based setup, while the front links restore geometry that becomes more important as lift and articulation increase.

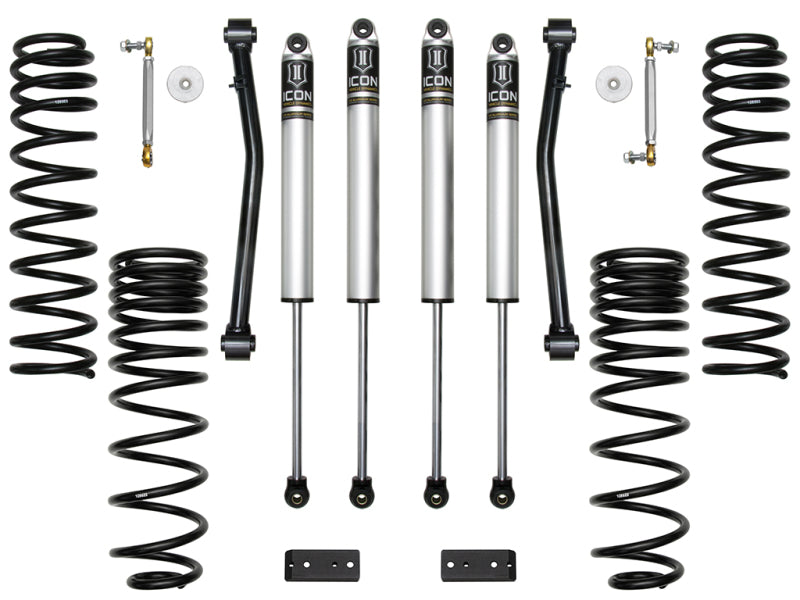

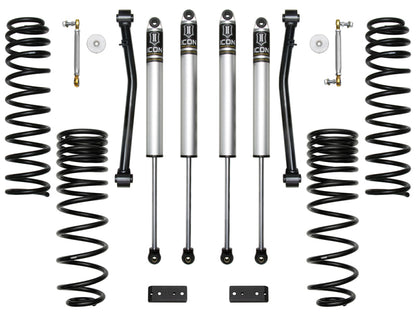

• 2.5-inch dual-rate front coils and 1.5-inch multi-rate rear coils
• Vehicle-specific rebuildable ICON 2.0 shocks
• Fixed front lower links for caster correction and articulation
• Adjustable front sway-bar links and rear sway-bar relocation

Application notes: ICON does not list this system for Gladiator Mojave. Diesel models net roughly 1.75 inches of front lift, and lightly equipped trucks may measure taller than the nominal lift. An adjustable track bar may be needed to precisely re-center the axles.

This Part Fits:

SKU: ICOK22103
Barcode: 840103415871
