ICON 2WD Front 2.5 VS RR CDXS Coilover Kit | 2025-2026 Toyota 4Runner

ICON 2WD Front 2.5 VS RR CDXS Coilover Kit is designed for the application listed below. Damping determines whether a loaded truck stays composed through repeated washboard hits and settles promptly after larger impacts. Choose the configuration for the loads and terrain you actually drive.

Product details

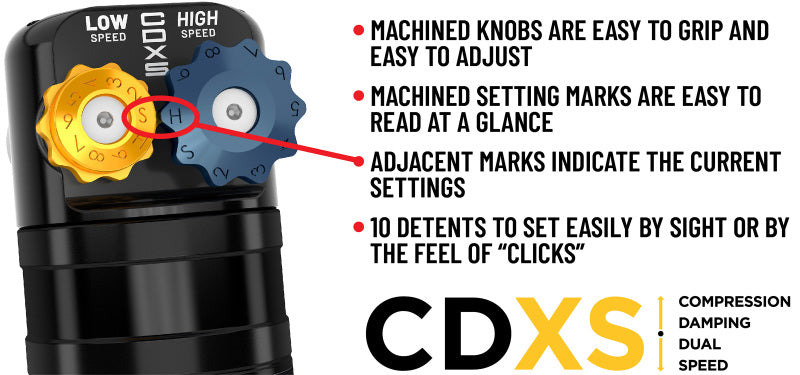

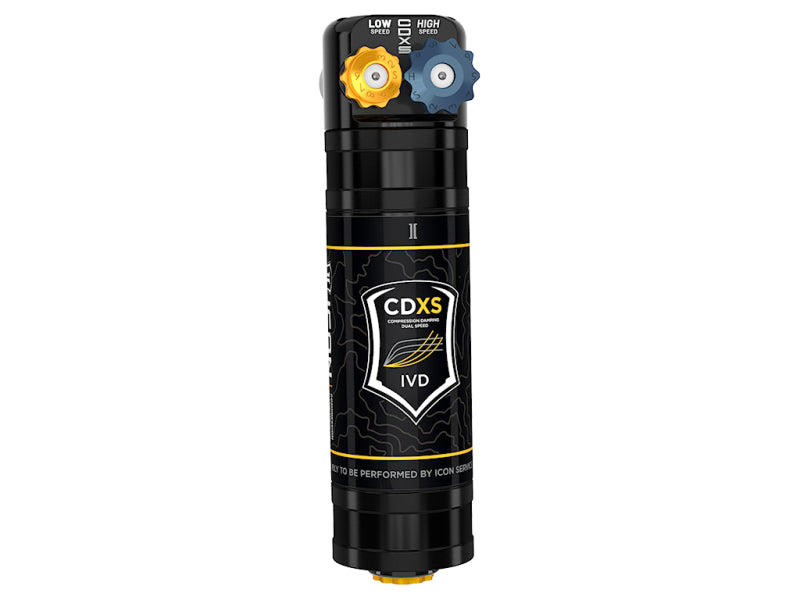

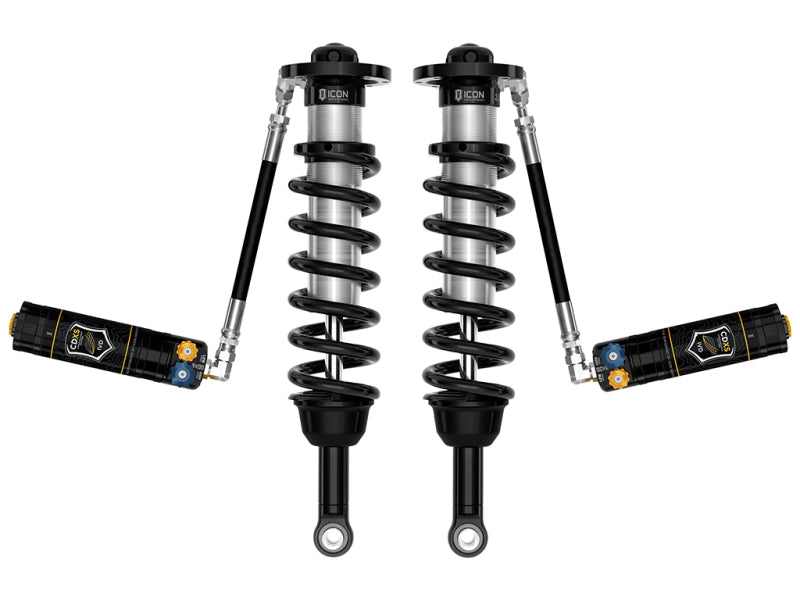

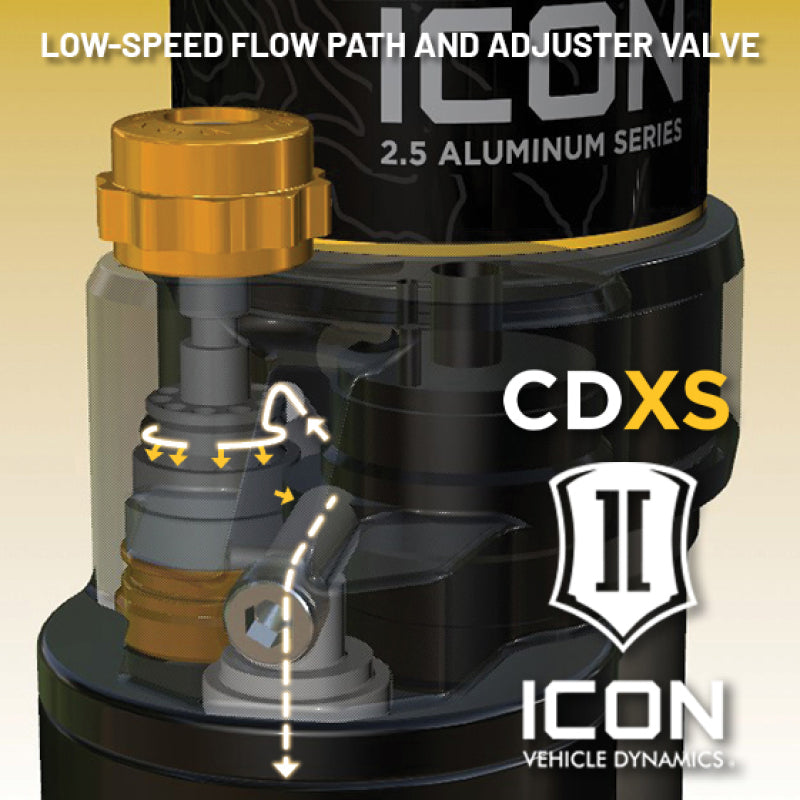

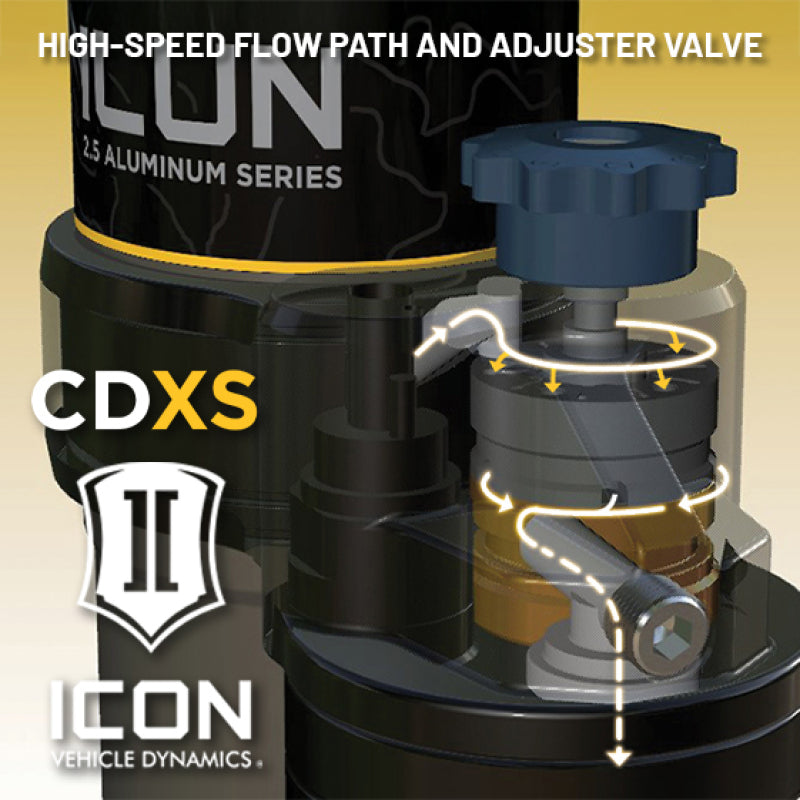

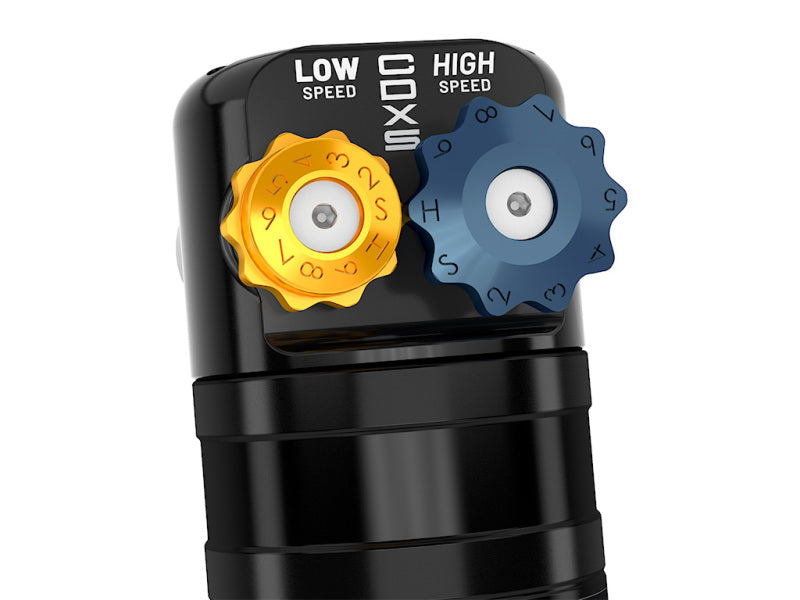

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir CDXS front coilover shocks are an incredible upgrade for the front end of the 2025-2026 Toyota 4Runner 2WD. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific valving, their large 2.5” shock body with increased piston surface area over stock components, and their optimized extended length taylored specifically for 2WD models, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with 2.5 Aluminum Series CDXS rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 6th Gen Toyota 4Runner.

In the field

Confirm the listed side, axle position, lift range and installed length before ordering. Check reservoir or hose routing where applicable and retorque the mounts after the first trail miles. The verified fitment table below covers Toyota 4Runner.

Vehicle applications
