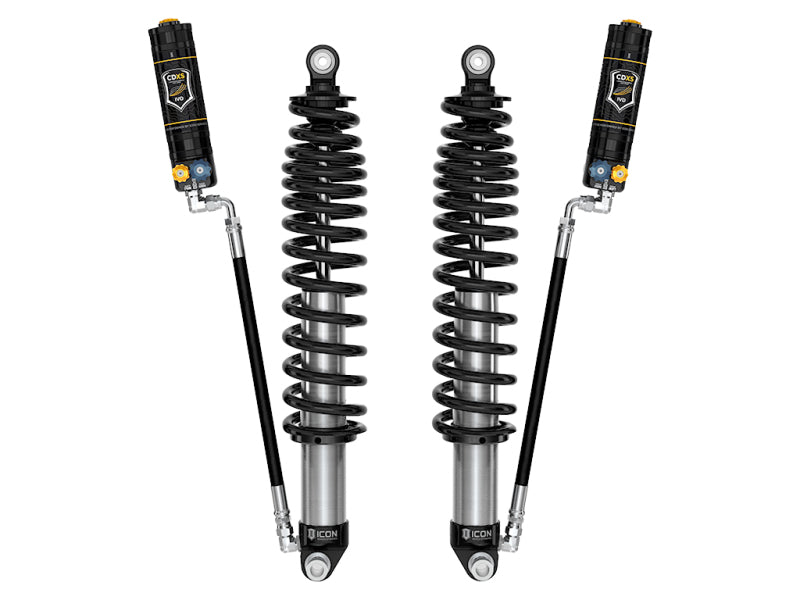

ICON 2.5 CDXS Heavy-Rate Rear Coilovers | 2021-2026 Ford Bronco

This combines the two things a heavily equipped Bronco may need at the rear: more spring capacity and more damping adjustment. The heavy-rate coil supports permanent cargo weight, while CDXS lets low- and high-speed compression be tuned separately.

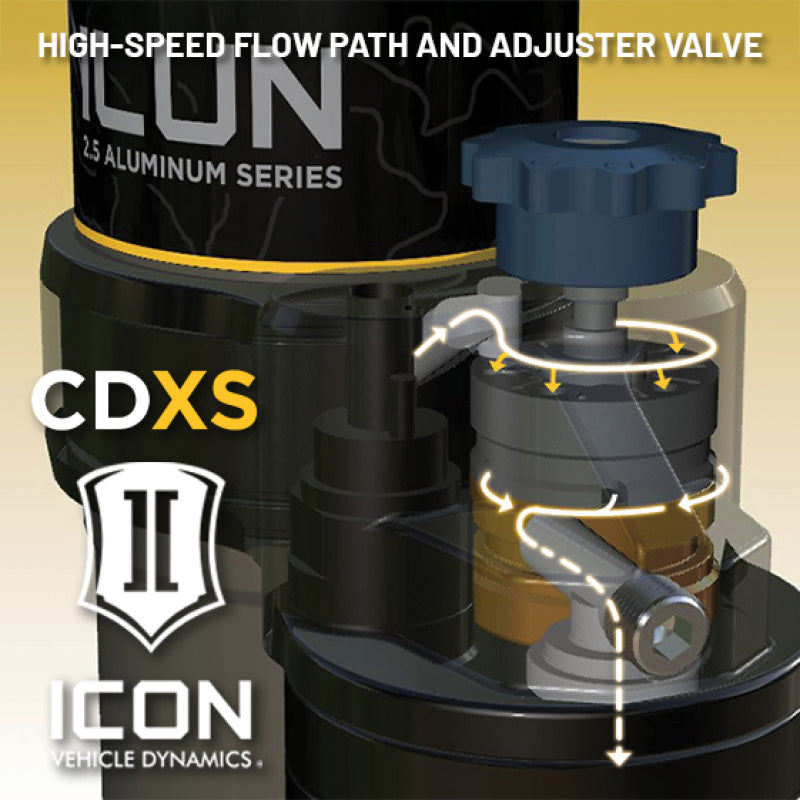

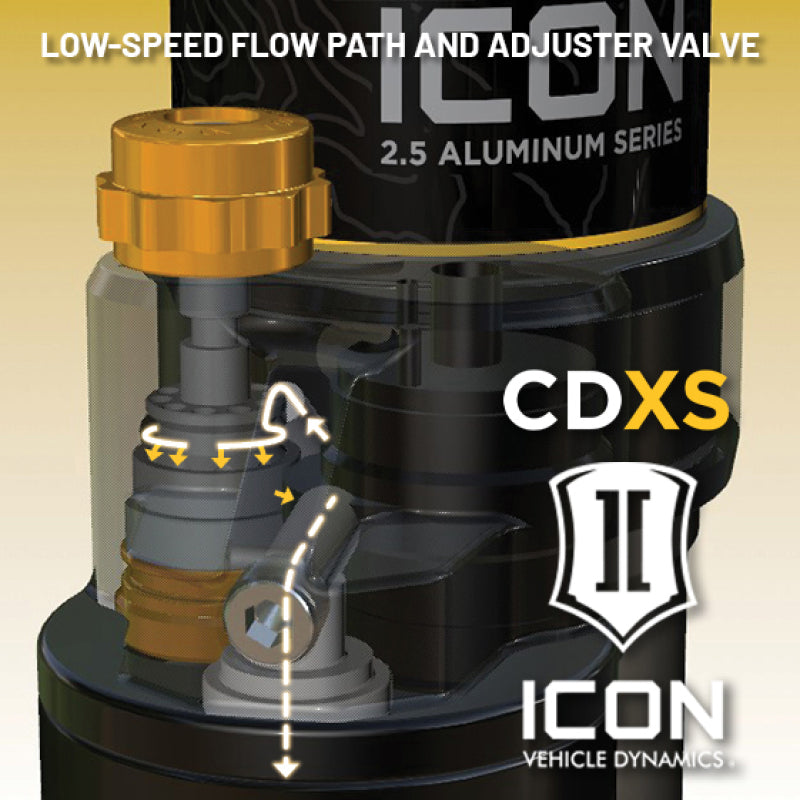

That separation matters because the spring and the shock have different jobs. The spring carries the load. Low-speed compression can add chassis support, while high-speed compression can be adjusted for sharper trail impacts without undoing the road setup.

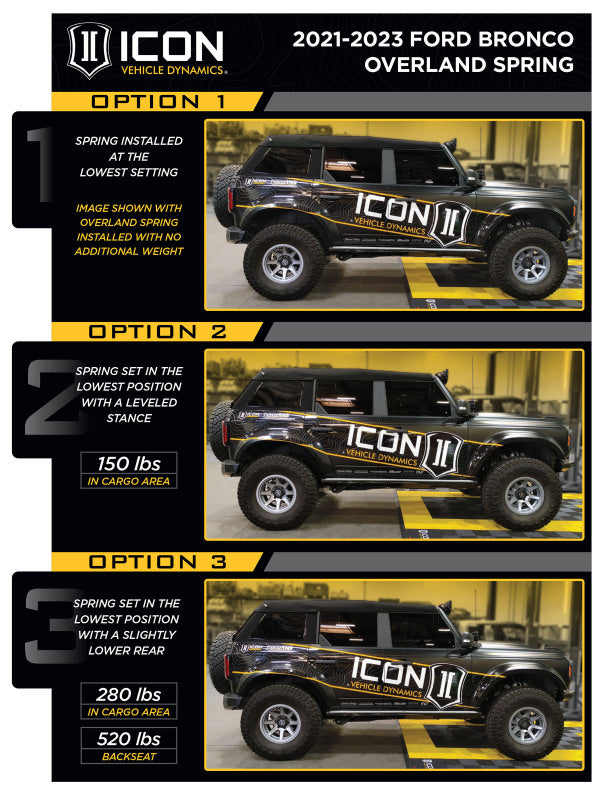

• Heavy-rate rear springs for consistently loaded builds

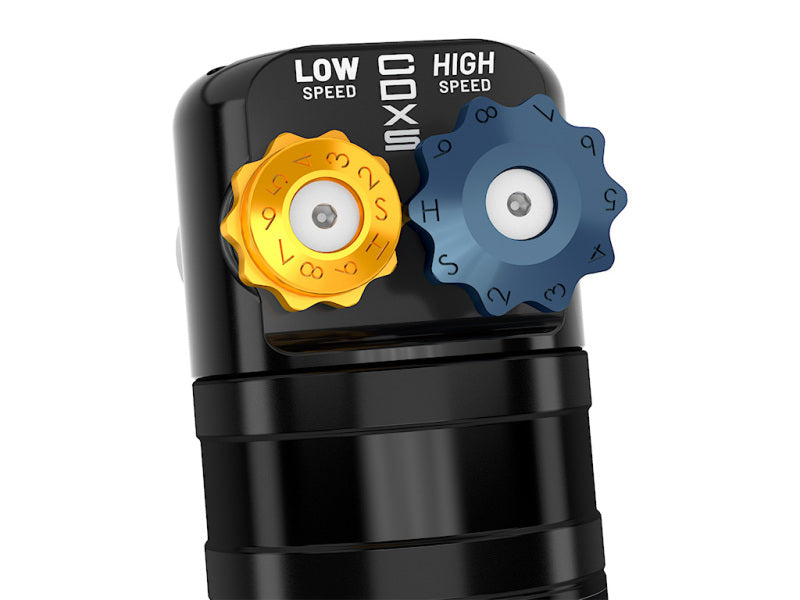

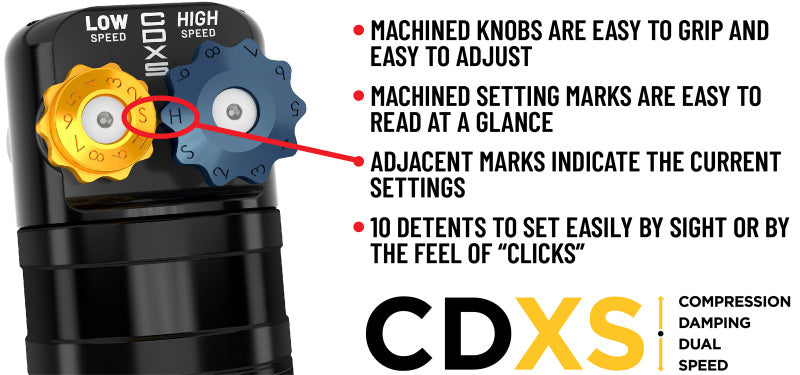

• Independent high- and low-speed compression adjustment

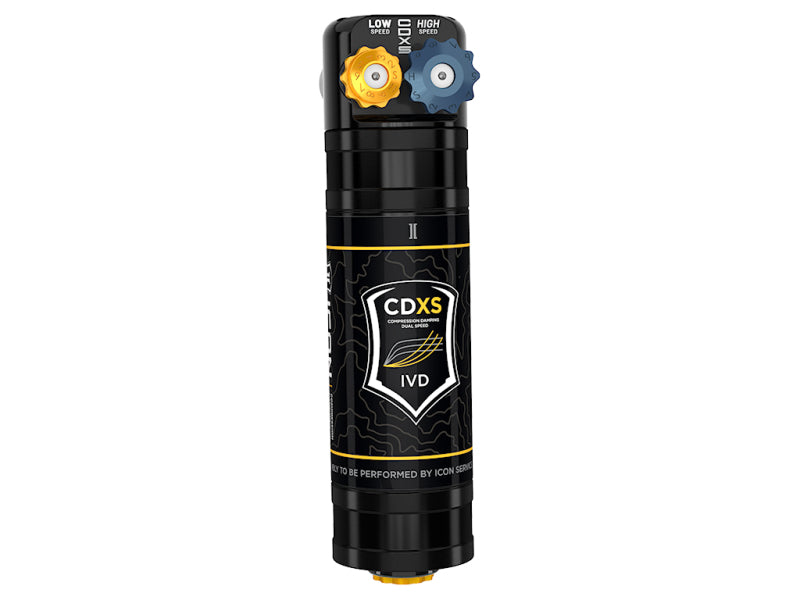

• Remote reservoir for sustained heat capacity
• Up to roughly 14 inches of rear wheel travel

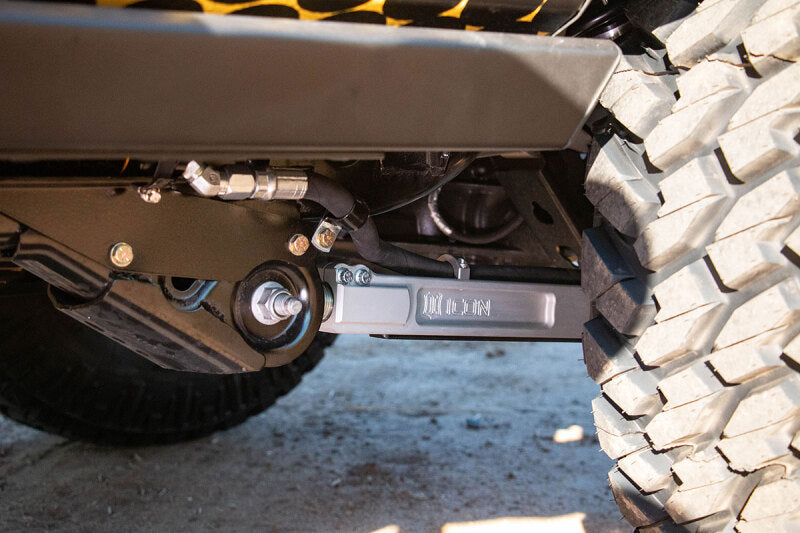

Installation note: The shaft-up reservoir layout requires correct hose routing along the rear links. Not listed for Bronco Raptor.

This Part Fits:

SKU: ICO48711X
Barcode: 00840103431406
